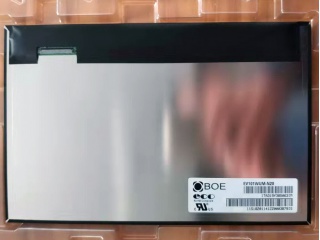

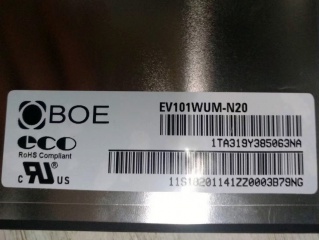

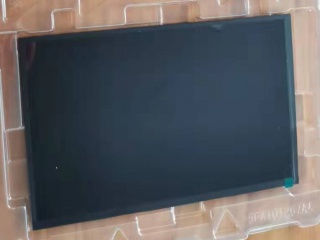

| Nombor Bahagian | EV101WUM-N20 |
| Jenama | BOE |
| Saiz | 10.1 |
| Permohonan | Medical Imaging |
| Resolusi | 1920×1200 |
| Komposisi | a-Si TFT-LCD, LCM |
| Kecerahan | |
| CR | 900:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | LVDS |
| jenama | BOE |
| model | EV101WUM-N20 |
| saiz pepenjuru | 10.1 inch |
| menaip | a-Si TFT-LCD, LCM |
| format piksel | 1920(RGB)×1200 [WUXGA] 224PPI |
| konfigurasi | RGB Vertical Stripe |
| kawasan aktif | 216.806(H)×135.504(V) mm |
| garis besar malap. | 229.45(H)×149.22(V) mm |
| kecerahan | 600 cd/m² (Typ.) |
| nisbah kontras | 900:1 (Typ.) (TM) |
| arah pandang | Symmetry |
| masa tindak balas | 30 (Typ.)(Tr+Td) |
| sudut pandangan | 80/80/80/80 (Typ.)(CR≥10) |
| mod operasi | ADS, Normally Black, Transmissive |
| warna sokongan | 16.7M 72% NTSC |
| sumber cahaya | WLED , W/O Driver |
| berat badan | - |
| direka untuk | Medical Imaging |
| kadar bingkai | 60Hz |
| panel sentuh | Without |
| jenis antara muka | LVDS (1 ch, 8-bit) , 45 pins Connector |
| bekalan kuasa | 3.3V (Typ.) |
| persekitaran | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -25 ~ 80 °C |
| A101VW01 V0 | AUO | 10.1 | 800×480 |
| A101VW01 V1 | AUO | 10.1 | 800×480 |
| B101EVT04.0 | AUO | 10.1 | 1280×800 |
| B101UAN01.7 HW1A | AUO | 10.1 | 1920×1200 |
| B101UAN02.1 | AUO | 10.1 | 1920×1200 |
| CLAA101WJ01 | CPT | 10.1 | 1366×768 |
| DLC1010CIG-6 | Other | 10.1 | 1280×800 |
| HSD100IFW1-A04 | HannStar | 10.1 | 1024×600 |
| LP101WH4-SLP2 | LG Display | 10.1 | 1366×768 |
| N101ICG-L21 Rev.A1 | Innolux | 10.1 | 1280×800 |
