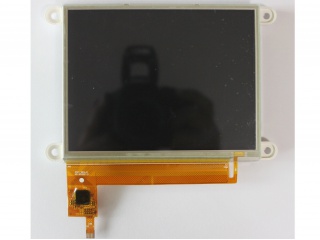

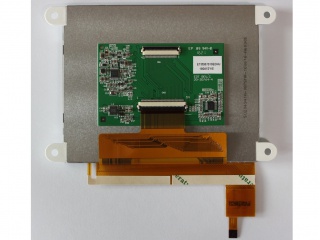

| Nombor Bahagian | ETM057010EDHU |
| Jenama | EDT |
| Saiz | 5.7 |
| Permohonan | Industrial |
| Resolusi | 640×480 |
| Komposisi | a-Si TFT-LCD, LCM |
| Kecerahan | |
| CR | 350:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | Parallel |
| jenama panel | EDT |
| model panel | ETM057010EDHU |
| saiz panel | 5.7" |
| jenis panel | a-Si TFT-LCD, LCM |
| resolusi | 640(RGB)×480, VGA, 141PPI |
| format piksel | RGB Vertical Stripe |
| kawasan paparan | 115.2(W)×86.4(H) mm |
| pembukaan bezel | - |
| saiz garis besar | 147.6(W)×100(H) ×11.7(D) mm |
| permukaan | - |
| kecerahan | 380 cd/m² (Typ.) |
| nisbah kontras | 350:1 (Typ.) (TM) |
| sudut pandangan | 65/65/55/52 (Typ.)(CR≥10) |
| mod paparan | TN, Normally White, Transmissive |
| pandangan terbaik pada | 12 o'clock |
| masa tindak balas | 15/35 (Typ.)(Tr/Td) |
| warna paparan | 16.7M 51% NTSC |
| jenis lampu | WLED , 30K hours , With LED Driver |
| kekerapan | 60Hz |
| skrin sentuh | PCAP |
| berat panel | - |
| permohonan | Industrial |
| antara muka isyarat | Parallel RGB (1 ch, 8-bit) , 40 pins Connector |
| voltan masukan | 3.3/3.3V (Typ.)(VCC/VDD) |
| persekitaran | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
