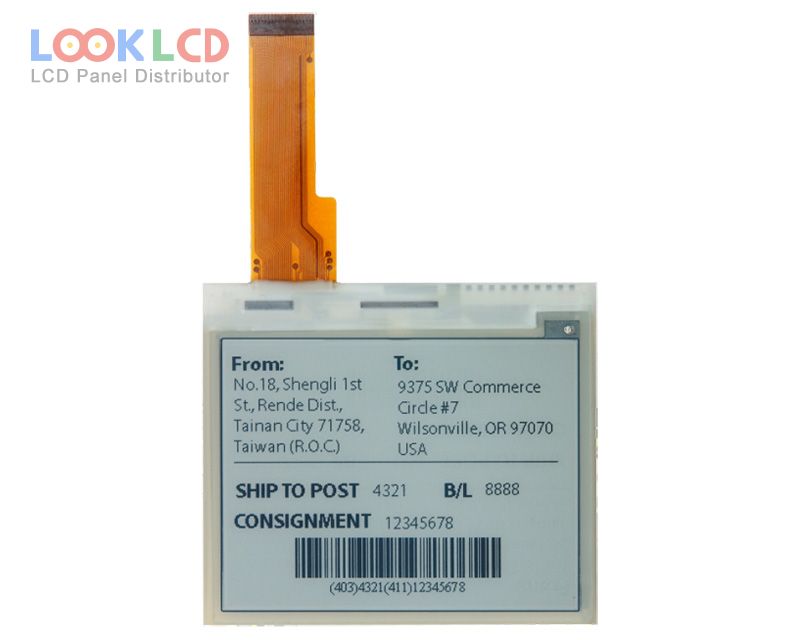

| Nombor Bahagian | EQ030AS181 |
| Jenama | PDI |
| Saiz | 3.0 |
| Permohonan | EPT |
| Resolusi | 320×240 |
| Komposisi | EPD |
| Kecerahan | |
| CR | |
| Warna | Monochrome |
| Lampu latar | No B/L |
| Antara muka | SPI |
| jenama panel | PDI |
| model panel | EQ030AS181 |
| jenis panel | EPD , EPD |
| saiz panel | 3.0 inch |
| resolusi | 320×240 , QVGA |
| kawasan aktif | 60.96×45.72 mm |
| garis besar | 69.2×60.4×1.2 mm |
| permukaan | Antiglare |
| kecerahan | |
| nisbah kontras | 10:1 (Typ.)(Reflective) |
| warna paparan | Monochrome (1-bit) |
| sudut pandangan | |
| antara muka isyarat | SPI, 10 pins |
| voltan masukan | 3.3/3.3V (Typ.)(VDD/VCC) |
| permohonan | EPT |
