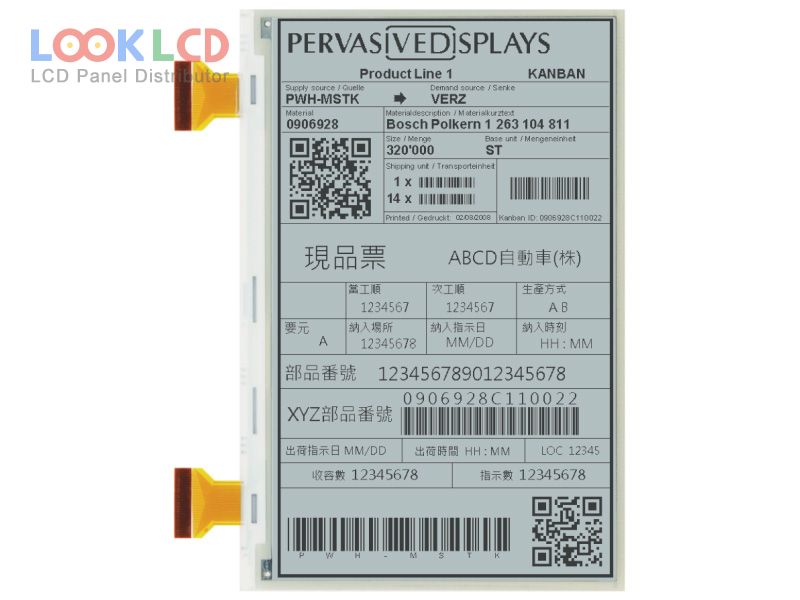

| Nombor Bahagian | EW074AT012 |
| Jenama | PDI |
| Saiz | 7.4 |
| Permohonan | EPT |
| Resolusi | 480×800 |
| Komposisi | EPD |
| Kecerahan | |
| CR | |
| Warna | Monochrome |
| Lampu latar | No B/L |
| Antara muka | Parallel Data |
| jenama panel | PDI |
| model panel | EW074AT012 |
| jenis panel | EPD , EPD |
| saiz panel | 7.4 inch |
| resolusi | 480×800 , WVGA |
| kawasan aktif | 96.96×161.6 mm |
| garis besar | 111×169×1.4 mm |
| permukaan | Antiglare |
| kecerahan | |
| nisbah kontras | 7:1 (Typ.)(Reflective) |
| warna paparan | Monochrome (1-bit) |
| sudut pandangan | |
| antara muka isyarat | Parallel Data (8-bit), 80 pins |
| voltan masukan | 3.3V (Typ.)(VDD) |
| permohonan | EPT |
| EW074AT012 | PDI | 7.4 | 480×800 |
| EW074BT011 | PDI | 7.4 | 480×800 |
| LQ074V3DC01 | SHARP | 7.4 | 640×480 |
| EG020AS012 | PDI | 2.0 | 200×96 |
| EK014AS014 | PDI | 1.44 | 128×96 |
| EQ030AS181 | PDI | 3.0 | 320×240 |
| ET044AS013 | PDI | 4.4 | 400×300 |
| EW074AT012 | PDI | 7.4 | 480×800 |
| EW074BT011 | PDI | 7.4 | 480×800 |
| LS012B4DG01 | SHARP | 1.2 | 184×38 |
| LS012B7DD01 | SHARP | 1.2 | 184×38 |
| LS013B7DH01 | SHARP | 1.26 | 144×168 |
| LS013B7DH03 | SHARP | 1.28 | 128×128 |
