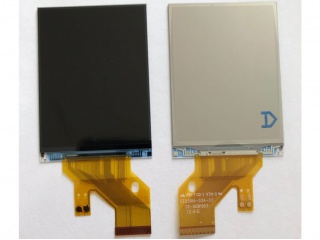

| Nombor Bahagian | EE030IA-03A |
| Jenama | Chimei Innolux |
| Saiz | 3.0 |
| Permohonan | Digital Still Camera |
| Resolusi | 640×480 |
| Komposisi | CELL , a-Si TFT-LC |
| Kecerahan | |
| CR | 800:1 |
| Warna | 16.7M |
| Lampu latar | No |
| Antara muka | YUV |
| pengilang | Chimei Innolux |
| saiz skrin | 3.0 inch |
| nombor piksel | 640×480(RGB) (VGA) 270PPI |
| kawasan aktif (mm) | 60 × 45 (H×V) |
| kawasan bezel (mm) | - |
| kecerahan | 0 cd/m² |
| sudut pandangan | 85/85/85/85 (Typ.)(CR≥10) |
| pandangan yang baik di | Symmetry |
| ketebalan kaca | 0.25+0.25 mm |
| kedalaman warna | 16.7M 60% NTSC |
| jisim | 5.89g (Typ.) |
| kadar segar semula | 60Hz |
| jenis isyarat | YUV (16-bit) , 51 pins FPC |
| bekalan voltan | 1.8/3.1V (VDDIO/VDD) |
| maks. penilaian | Storage Temp.: -30 ~ 80 °C Operating Temp.: -10 ~ 70 °C |
| nama model | EE030IA-03A |
| jenis skrin | CELL , a-Si TFT-LCD |
| susunan | RGB Horizontal Stripe |
| garis besar (mm) | 69 × 49 × 0.8 (H×V×D) |
| rawatan | Hard coating |
| nisbah kontras | 800 : 1 (Typ.) (TM) |
| tindak balas | 35 (Typ.)(Tr+Td) ms |
| mod kerja | IPS, Normally Black, Transmissive |
| ketransmisian | 4.5% (Typ.)(with Polarizer) |
| lampu latar | No B/L , No Driver |
| digunakan untuk | Digital Still Camera Digital Video Camera |
| skrin sentuh | Without |
