| Nombor Bahagian | COM50H5N15ULC |
| Jenama | CASIO |
| Saiz | 5.0 |
| Permohonan | Industrial Automotiv |
| Resolusi | 800×480 |
| Komposisi | a-Si TFT-LCD, LCM |
| Kecerahan | |
| CR | 700:1 |
| Warna | 262K/16.7M |
| Lampu latar | 5S2P |
| Antara muka | LVDS |
| jenama panel | CASIO |
| model panel | COM50H5N15ULC |
| saiz panel | 5.0" |
| jenis panel | a-Si TFT-LCD, LCM |
| resolusi | 800(RGB)×480, WVGA, 186PPI |
| format piksel | RGB Vertical Stripe |

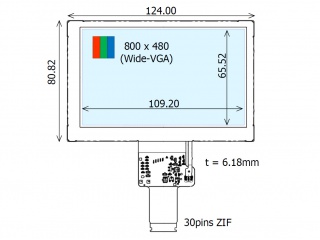

| kawasan paparan | 109.2(W)×65.52(H) mm |
| pembukaan bezel | 110.6(W)×66.92(H) mm |
| saiz garis besar | 124(W)×80.82(H) ×6.53(D) mm |
| permukaan | - |
| kecerahan | 430 cd/m² (Typ.) |
| nisbah kontras | 700:1 (Typ.) (TM) |
| sudut pandangan | 80/80/80/80 (Min.)(CR≥10) |
| mod paparan | VA, Normally Black, Transflective |
| pandangan terbaik pada | Symmetry |
| masa tindak balas | 50 (Max.)(Tr+Td) |
| warna paparan | 262K/16.7M 50% NTSC |
| jenis lampu | 5S2P WLED , Without Driver |
| kekerapan | 60Hz |
| skrin sentuh | Without |
| berat panel | - |
| permohonan | Industrial Automotive Display |
| antara muka isyarat | LVDS (1 ch, 6/8-bit) , 30 pins FPC |
| voltan masukan | 3.3V (Typ.) |
| persekitaran | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 95 °C |
