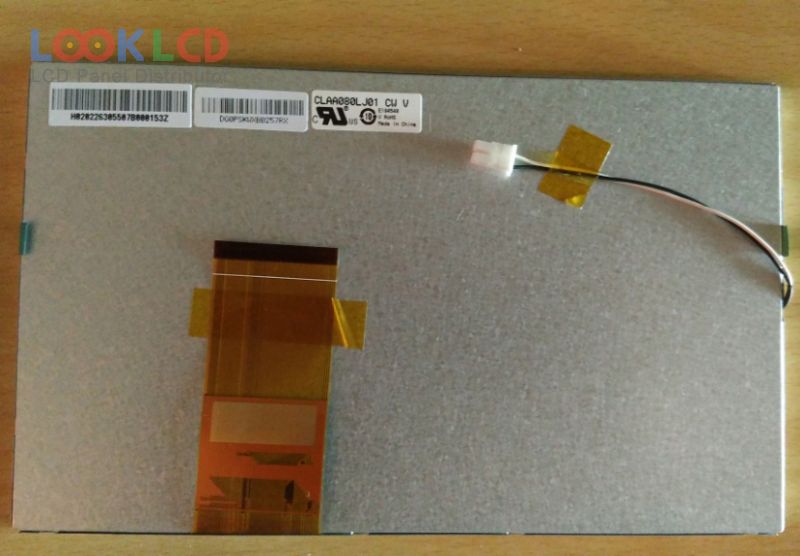

| Nombor Bahagian | CLAA080LJ01CW |
| Jenama | CPT |
| Saiz | 8.0 |
| Permohonan | CNS |
| Resolusi | 800×480 |
| Komposisi | LCM |
| Kecerahan | 450 |
| CR | 500:1 |
| Warna | 262K/16.2M |
| Lampu latar | WLED |
| Antara muka | TTL |
| jenama panel | CPT |
| model panel | CLAA080LJ01CW |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 8.0 inch |
| resolusi | 800(RGB)×480 , WVGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 176.64×99.36 mm |
| garis besar | 192.8×116.9×7 mm |
| permukaan | Antiglare, Hard coating (3H) |
| kecerahan | 450 cd/m² (Typ.) |
| nisbah kontras | 500:1 (Typ.) |
| warna paparan | 262K/16.2M (6-bit / 6-bit + FRC), CIE193150% |
| masa tindak balas | 25 (Typ.)(Tr+Td) |
| sudut pandangan | 75/75/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 3S10PWLEDWithout Driver |
| antara muka isyarat | TTL (1 ch, 6/8-bit), 60 pins |
| voltan masukan | 3.3/9.2/18/-6V (Typ.)(DVDD/AVDD/VDDG/VEEG) |
| permohonan | CNS |
| CLAA080LA0BCW | CPT | 8.0 | 800×480 |
| CLAA080LB0AXV | CPT | 8.0 | 800×480 |
| CLAA080LG01CW | CPT | 8.0 | 800×480 |
| CLAA080LJ01CW | CPT | 8.0 | 800×480 |
| CLAA080MB0DCW | CPT | 8.0 | 800×600 |
| CLAA080NA01 CW | CPT | 8.0 | 1024×600 |
| CLAA080WQ02 XG | CPT | 8.0 | 800×1280 |
| CLAA080XA03BW | CPT | 8.0 | 1024×768 |
| CLAA088WA01XN | CPT | 8.8 | 1280×480 |
| CLAA089NA0FCW | CPT | 8.9 | 1024×600 |
| AM-480272-043D | Other | 4.3 | 480×272 |
| CLAA080NA01 CW | CPT | 8.0 | 1024×600 |
| EDTCB18QEF | TOSHIBA | 7.0 | 800×480 |
| G150X1-L02 | Innolux | 15.0 | 1024×768 |
| LQ050Q5DR01 | SHARP | 5.0 | 320×240 |
| LQ058T5BA01 | SHARP | 5.8 | |
| LQ058Y5DG30A | SHARP | 5.8 | 800×480 |
| LQ6BW558T | SHARP | 5.8 | 480×234 |
| TM070RDH01 | Tianma | 7.0 | 800×480 |
| YXDK050TN02-40NM03 | SEBO | 5.0 | 800×480 |
