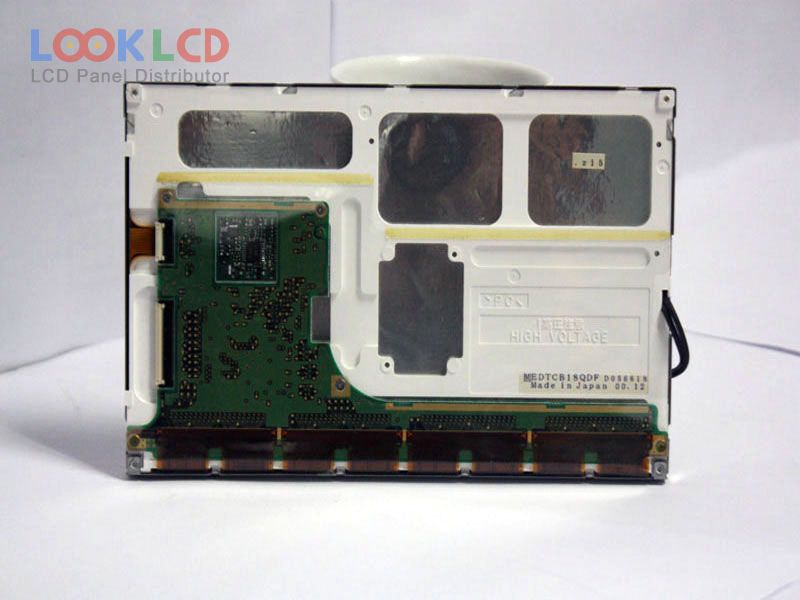

| Nombor Bahagian | EDTCB18QEF |
| Jenama | TOSHIBA |
| Saiz | 7.0 |
| Permohonan | CNS |
| Resolusi | 800×480 |
| Komposisi | LCM |
| Kecerahan | 400 |
| CR | 150:1 |
| Warna | 262K |
| Lampu latar | CCFL |
| Antara muka | TTL |
| jenama panel | Toshiba Matsushita |
| model panel | EDTCB18QEF |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 7.0 inch |
| resolusi | 800(RGB)×480 , WVGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 152.4×91.44 mm |
| garis besar | 171×109.5×11.5 mm |
| permukaan | Antiglare |
| kecerahan | 400 cd/m² (Typ.) |
| nisbah kontras | 150:1 (Typ.) |
| warna paparan | 262K (6-bit) |
| masa tindak balas | 20/36 (Typ.)(Tr/Td) |
| sudut pandangan | 60/60/30/60 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 1 pcsCCFLWithout Driver |
| antara muka isyarat | Parallel RGB (1 ch, 6-bit), 40 pins |
| voltan masukan | 3.3V (Typ.)(VDD) |
| permohonan | CNS |
