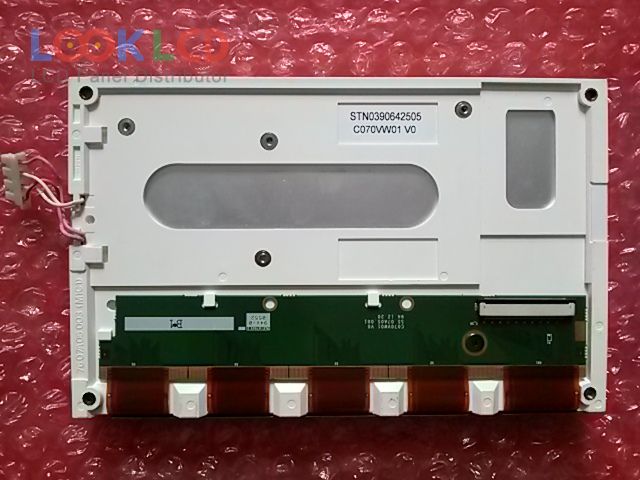

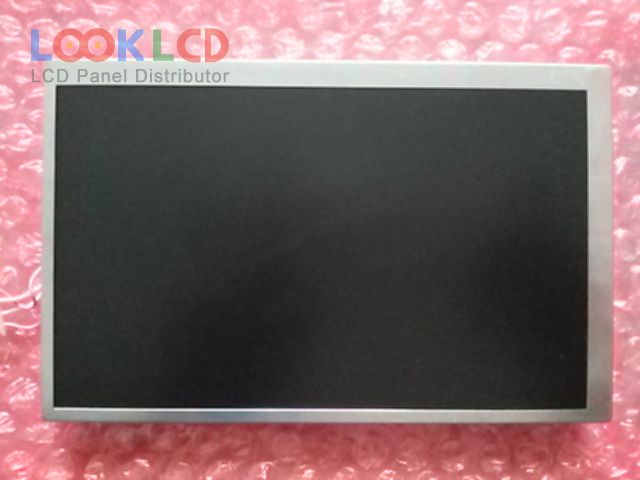

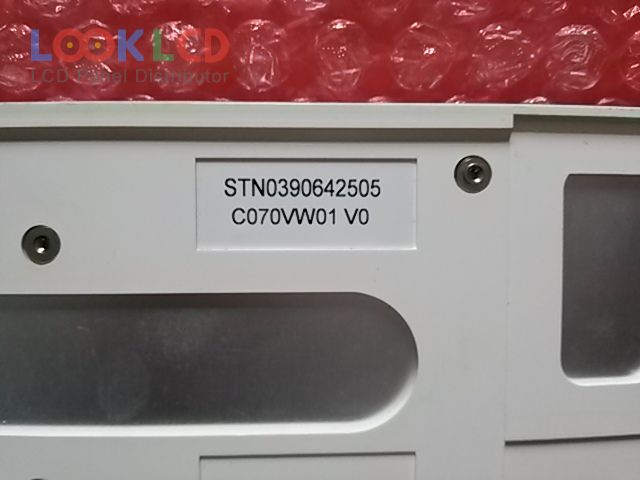

| Nombor Bahagian | C070VW01 V0 |
| Jenama | AUO |
| Saiz | 7.0 |
| Permohonan | CNS |
| Resolusi | 800×480 |
| Komposisi | LCM |
| Kecerahan | 650 |
| CR | 300:1 |
| Warna | 262K |
| Lampu latar | CCFL |
| Antara muka | TTL |
| jenama panel | AUO |
| model panel | C070VW01 V0 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 7.0 inch |
| resolusi | 800(RGB)×480 , WVGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 152.4×91.44 mm |
| garis besar | 165×104×13 mm |
| permukaan | Antiglare (Haze 25%) |
| kecerahan | 650 cd/m² (Typ.) |
| nisbah kontras | 300:1 (Typ.) |
| warna paparan | 262K (6-bit) |
| masa tindak balas | 6/10 (Typ.)(Tr/Td) |
| sudut pandangan | 60/60/40/60 (Typ.)(CR≥10)(L/R/U/D) |
| jenis lampu | 2 pcsCCFLWithout Driver |
| antara muka isyarat | Parallel RGB (1 ch, 6-bit), 50 pins |
| voltan masukan | 3.3/9.8/15/-7/4.2V (Typ.)(VCC/AVDD/VGH/VGL/VCOM) |
| rohs: | |
| permohonan | CNS |
