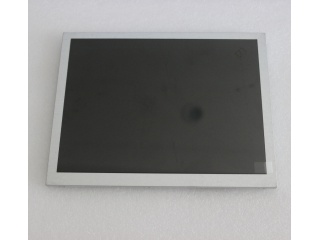

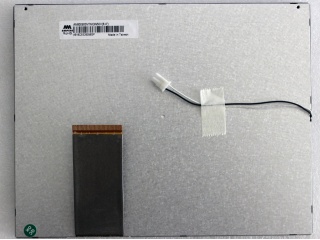

| Nombor Bahagian | AM-800600MTMQW-50H |
| Jenama | AMPIRE |
| Saiz | 8.4 |
| Permohonan | Industrial Outdoor H |
| Resolusi | 800×600 |
| Komposisi | a-Si TFT-LCD , LCM |
| Kecerahan | |
| CR | 600:1 |
| Warna | 262K/16.7M |
| Lampu latar | 6S5P |
| Antara muka | |
| jenama panel | AMPIRE |
| saiz panel | 8.4" |
| resolusi | 800(RGB)×600, SVGA, 119PPI |
| kawasan paparan | 170.4(W)×127.8(H) mm |
| saiz garis besar | 189.75(W)×149.4(H) ×5.3(D) mm |
| kecerahan | 1000 cd/m² (Typ.) |
| sudut pandangan | 75/75/60/70 (Typ.)(CR≥10) |
| pandangan terbaik pada | - |
| warna paparan | 262K/16.7M |
| kekerapan | 60Hz |
| berat badan | TBD |
| model panel | AM-800600MTMQW-50H |
| jenis panel | a-Si TFT-LCD , LCM |
| format piksel | RGB Vertical Stripe |
| pembukaan bezel | 173.4(W)×130.8(H) mm |
| permukaan | - |
| nisbah kontras | 600:1 (Typ.) (TM) |
| mod paparan | TN, Normally White, Transmissive |
| masa tindak balas | 8 (Typ.)(Tr+Td) |
| jenis lampu | 6S5P WLED , Without Driver |
| skrin sentuh | Without |
| permohonan | Industrial Outdoor High Brightness |
| AA084SA01 | Mitsubishi | 8.4 | 800×600 |
| AM-800600M3TNQW-00H | AMPIRE | 8.4 | 800×600 |
| AM-800600M3TNQW-01H-F | AMPIRE | 8.4 | 800×600 |
| G084SN05 V3 | AUO | 8.4 | 800×600 |
| G084SN05 V7 | AUO | 8.4 | 800×600 |
| LQ084S3LG03 | SHARP | 8.4 | 800×600 |
| LTA084C190F | TOSHIBA | 8.4 | 800×600 |
| LTA084C274F | TOSHIBA | 8.4 | 800×600 |
| NL6448BC26-08D | NLT | 8.4 | 640×480 |
| NL6448BC26-09C | NLT | 8.4 | 640×480 |
