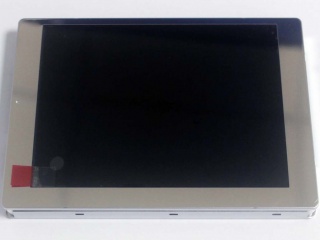

| Nombor Bahagian | AM-640480VSTZQW-20H |
| Jenama | AMPIRE |
| Saiz | 5.7 |
| Permohonan | Industrial |
| Resolusi | 640×480 |
| Komposisi | a-Si TFT-LCD , LCM |
| Kecerahan | |
| CR | 1200:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antara muka | |
| jenama | AMPIRE |
| saiz pepenjuru | 5.7 inch |
| format piksel | 640(RGB)×480 [VGA] 141PPI |
| kawasan aktif | 115.2(H)×86.4(V) mm |
| kawasan bezel | 118.2(H)×89.4(V) mm |
| kecerahan | 400 cd/m² (Typ.) |
| arah pandang | Symmetry |
| sudut pandangan | 85/85/85/85 (Typ.)(CR≥10) |
| warna sokongan | 262K 60% NTSC |
| berat badan | - |
| kadar bingkai | 60Hz |
| model | AM-640480VSTZQW-20H |
| menaip | a-Si TFT-LCD , LCM |
| konfigurasi | RGB Vertical Stripe |
| garis besar malap. | 144(H)×104.6(V) ×12.6(D) mm |
| rawatan | - |
| nisbah kontras | 1200:1 (Typ.) (TM) |
| masa tindak balas | 30 (Typ.)(Tr+Td) |
| mod operasi | IPS, Normally Black, Transmissive |
| sumber cahaya | WLED [3S7P] , 50K hours , With LED Driver |
| direka untuk | Industrial |
| panel sentuh | Without |
| AM-640480G2TNQW-00H-F | AMPIRE | 5.7 | 640×480 |
| AM-640480G2TNQW-31H | AMPIRE | 5.7 | 640×480 |
| AM-640480G2TNQW-31H-F | AMPIRE | 5.7 | 640×480 |
| AM-640480G2TNQW-T01H-A | AMPIRE | 5.7 | 640×480 |
| AM-640480G4TNQW-A0H | AMPIRE | 5.7 | 640×480 |
| AM-640480G4TNQW-T01H | AMPIRE | 5.7 | 640×480 |
| AM-640480GFTNQW-T01H-L | AMPIRE | 5.7 | 640×480 |
| AM-640480GJTNQW-TA0H | AMPIRE | 5.7 | 640×480 |
| TM057QDHG04 | Tianma | 5.7 | 640×480 |
| TM320240EGFWVSWD | Tianma | 5.7 | 320×240 |
