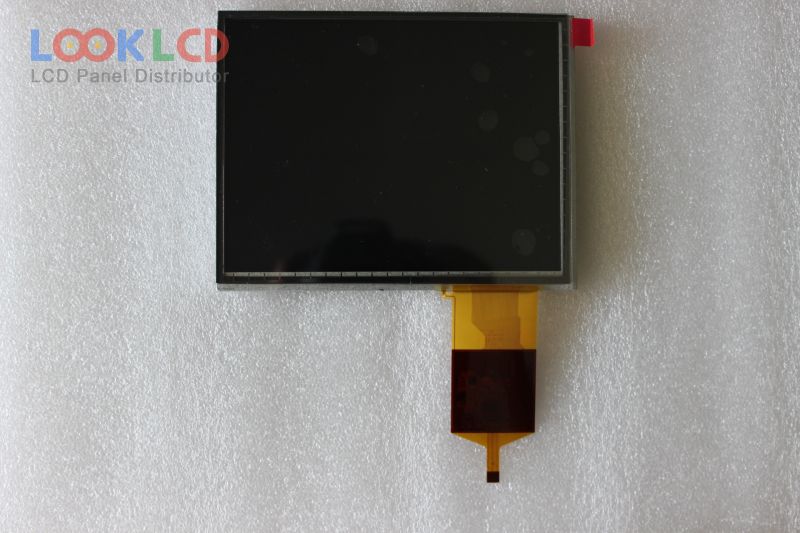

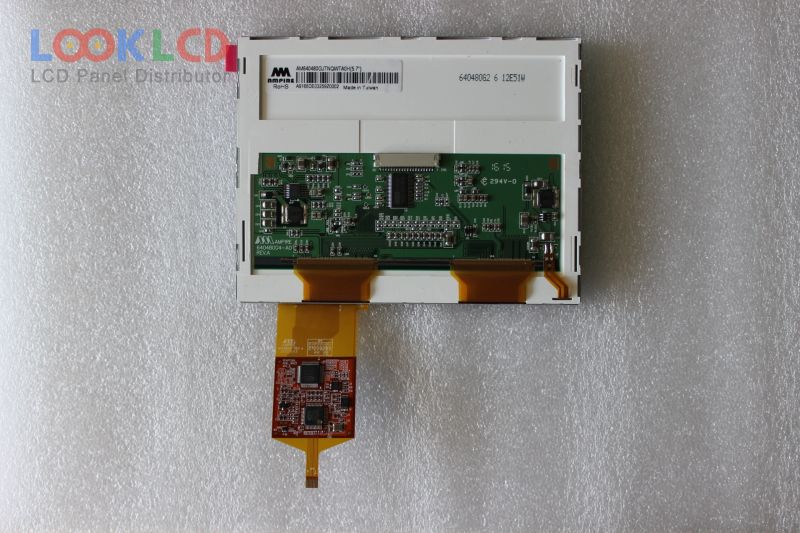

| Nombor Bahagian | AM-640480GJTNQW-TA0H |
| Jenama | AMPIRE |
| Saiz | 5.7 |
| Permohonan | IA |
| Resolusi | 640×480 |
| Komposisi | LCM |
| Kecerahan | 425 |
| CR | 250:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antara muka | LVDS |
| jenama panel | AMPIRE |
| model panel | AM-640480GJTNQW-TA0H |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 5.7 inch |
| resolusi | 640(RGB)×480 , VGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 115.2×86.4 mm |
| garis besar | 127×98.43×9.84 mm |
| permukaan | |
| kecerahan | 425 cd/m² (Typ.) |
| nisbah kontras | 250:1 (Typ.) |
| warna paparan | 262K (6-bit), CIE193150% |
| masa tindak balas | 50 (Typ.)(Tr+Td) |
| sudut pandangan | 70/70/50/50 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | WLEDEmbedded (LED Driver) |
| antara muka isyarat | LVDS (1 ch, 8-bit), 20 pins |
| voltan masukan | 3.3V (Typ.) |
| permohonan | IA |
