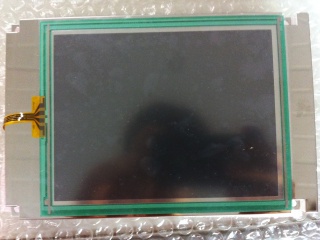

| Nombor Bahagian | AM-320240N1TMQW-TW0H-A(R) |
| Jenama | AMPIRE |
| Saiz | 5.7 |
| Permohonan | Industrial |
| Resolusi | 320×240 |
| Komposisi | LCM, a-Si TFT-LCD |
| Kecerahan | |
| CR | 350:1 |
| Warna | 65K/262K |
| Lampu latar | 3S7P |
| Antara muka | |
| pengilang | AMPIRE |
| nama model | AM-320240N1TMQW-TW0H-A(R) |
| saiz skrin | 5.7 inch |
| jenis skrin | LCM, a-Si TFT-LCD |
| nombor piksel | 320(RGB)×240 (QVGA) 70PPI |
| susunan | RGB Vertical Stripe |
| kawasan aktif (mm) | 115.2 × 86.4 (H×V) |
| garis besar (mm) | 167 × 109 × 14.8 (H×V×D) |
| kawasan bezel (mm) | 118.2 × 89.4 (H×V) |
| rawatan | - |
| kecerahan | 400 cd/m² (Typ.) |
| nisbah kontras | 350 : 1 (Min.) (TM) |
| sudut pandangan | 70/70/50/70 (Typ.)(CR≥10) |
| tindak balas | 15/35 (Typ.)(Tr/Td) ms |
| pandangan yang baik di | 6 o'clock |
| mod kerja | TN, Normally White, Transmissive |
| kedalaman warna | 65K/262K 61% NTSC |
| lampu latar | 3S7P WLED , No Driver |
| jisim | TBD |
| digunakan untuk | Industrial |
| kadar segar semula | 60Hz |
| skrin sentuh | 4-wire Resistive Touch |
| Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
