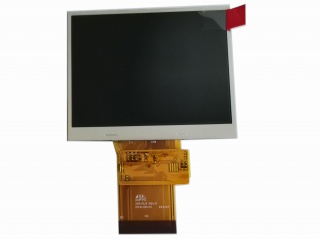

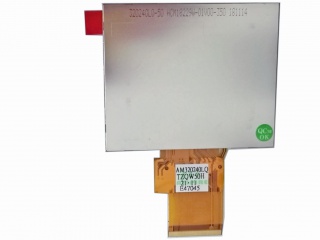

| Nombor Bahagian | AM-320240LQTZQW-50H |
| Jenama | AMPIRE |
| Saiz | 3.5 |
| Permohonan | Industrial Outdoor H |
| Resolusi | 320×240 |
| Komposisi | a-Si TFT-LCD , LCM |
| Kecerahan | |
| CR | 1000:1 |
| Warna | 16.7M |
| Lampu latar | 6S2P |
| Antara muka | Parallel |
| jenama panel | AMPIRE |
| saiz panel | 3.5" |
| resolusi | 320(RGB)×240, QVGA, 115PPI |
| kawasan paparan | 70.08(W)×52.56(H) mm |
| saiz garis besar | 76.9(W)×63.9(H) ×3.45(D) mm |
| kecerahan | 800 cd/m² (Typ.) |
| sudut pandangan | 85/85/85/85 (Typ.)(CR≥10) |
| pandangan terbaik pada | Symmetry |
| warna paparan | 16.7M 60% NTSC |
| kekerapan | 60Hz |
| berat panel | - |
| antara muka isyarat | Parallel RGB (1 ch, 8-bit) + SPI , 50 pins FPC |
| voltan masukan | 3.3V (Typ.) |
| persekitaran | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| model panel | AM-320240LQTZQW-50H |
| jenis panel | a-Si TFT-LCD , LCM |
| format piksel | RGB Vertical Stripe |
| pembukaan bezel | 72.88(W)×54.94(H) mm |
| permukaan | - |
| nisbah kontras | 1000:1 (Typ.) (TM) |
| mod paparan | Normally Black, Transmissive |
| masa tindak balas | 30 (Typ.)(Tr+Td) |
| jenis lampu | 6S2P WLED , 36K hours , Without Driver |
| skrin sentuh | Without |
| permohonan | Industrial Outdoor High Brightness Instruments & Meters |
