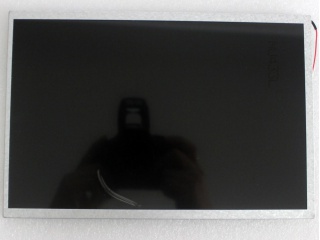

| Nombor Bahagian | AM-1280800NGTZQW-17H |
| Jenama | AMPIRE |
| Saiz | 10.1 |
| Permohonan | Industrial Outdoor H |
| Resolusi | 1280×800 |
| Komposisi | a-Si TFT-LCD , LCM |
| Kecerahan | |
| CR | 800:1 |
| Warna | 16.7M |
| Lampu latar | 7S6P |
| Antara muka | LVDS |
| jenama panel | AMPIRE |
| saiz panel | 10.1" |
| resolusi | 1280(RGB)×800, WXGA, 149PPI |
| kawasan paparan | 216.96(W)×135.6(H) mm |
| saiz garis besar | 231(W)×154.4(H) ×6.2(D) mm |
| kecerahan | 1500 cd/m² (Typ.) |
| sudut pandangan | 85/85/85/85 (Typ.)(CR≥10) |
| pandangan terbaik pada | Symmetry |
| warna paparan | 16.7M 45% NTSC |
| kekerapan | 60Hz |
| berat panel | TBD |
| antara muka isyarat | LVDS (1 ch, 8-bit) , 40 pins Connector |
| voltan masukan | 3.3V (Typ.) |
| persekitaran | Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C |
| model panel | AM-1280800NGTZQW-17H |
| jenis panel | a-Si TFT-LCD , LCM |
| format piksel | RGB Vertical Stripe |
| pembukaan bezel | 220.76(W)×140.4(H) mm |
| permukaan | Hard coating |
| nisbah kontras | 800:1 (Typ.) (TM) |
| mod paparan | IPS, Normally Black, Transmissive |
| masa tindak balas | 25 (Typ.)(Tr+Td) |
| jenis lampu | 7S6P WLED , 50K hours , Without Driver |
| skrin sentuh | Without |
| permohonan | Industrial Outdoor High Brightness |
