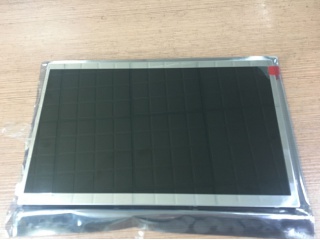

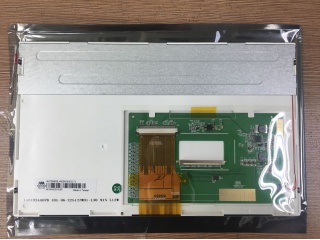

| Nombor Bahagian | AM-1024600LHMQW-16H |
| Jenama | AMPIRE |
| Saiz | 10.1 |
| Permohonan | Industrial |
| Resolusi | 1024×600 |
| Komposisi | LCM , a-Si TFT-LCD |
| Kecerahan | |
| CR | 500:1 |
| Warna | 262K |
| Lampu latar | 6S6P |
| Antara muka | LVDS |
| pengilang | AMPIRE |
| nama model | AM-1024600LHMQW-16H |
| saiz skrin | 10.1 inch |
| jenis skrin | LCM , a-Si TFT-LCD |
| nombor piksel | 1024(RGB)×600 (WSVGA) 117PPI |
| susunan | RGB Vertical Stripe |
| kawasan aktif (mm) | 222.72 × 125.28 (H×V) |
| garis besar (mm) | 235 × 145.8 × 7.3 (H×V×D) |
| kawasan bezel (mm) | 225.92 × 128.48 (H×V) |
| rawatan | Antiglare |
| kecerahan | 250 cd/m² (Typ.) |
| nisbah kontras | 500 : 1 (Typ.) (TM) |
| sudut pandangan | 70/70/70/50 (Typ.)(CR≥10) |
| tindak balas | 4/12 (Typ.)(Tr/Td) ms |
| pandangan yang baik di | - |
| mod kerja | TN, Normally White, Transmissive |
| kedalaman warna | 262K 47% NTSC |
| lampu latar | 6S6P WLED , 20K hours , With LED Driver |
| jisim | TBD |
| digunakan untuk | Industrial |
| kadar segar semula | 60Hz |
| skrin sentuh | Without |
| jenis isyarat | LVDS (1 ch, 6-bit) , 30 pins Connector |
| bekalan voltan | 3.3V (Typ.) |
| maks. penilaian | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
