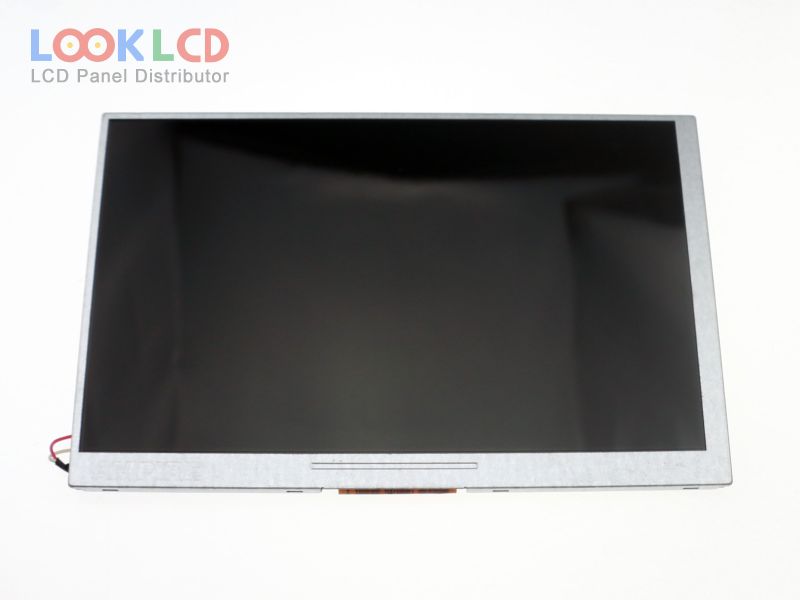

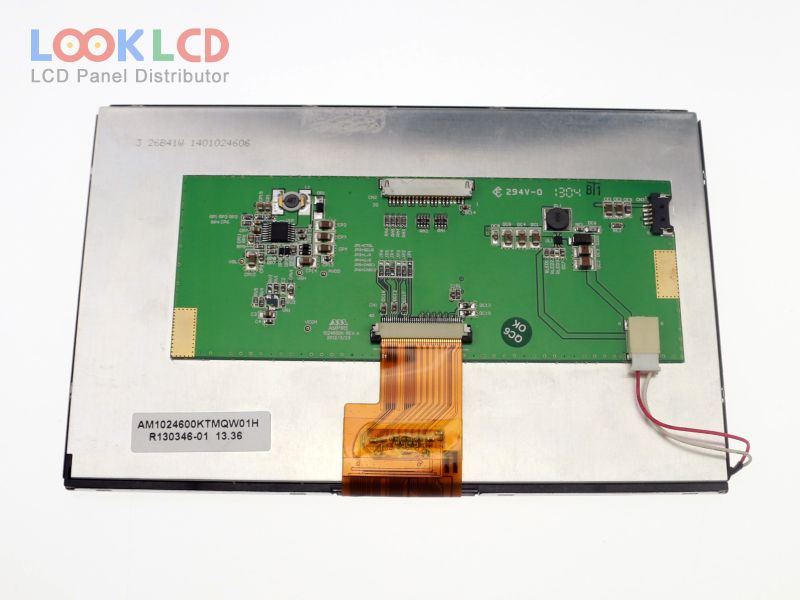

| Nombor Bahagian | AM-1024600KTMQW-01H |
| Jenama | AMPIRE |
| Saiz | 7.0 |
| Permohonan | IA |
| Resolusi | 1024×600 |
| Komposisi | LCM |
| Kecerahan | 1000 |
| CR | 700:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | LVDS |
| jenama panel | AMPIRE |
| model panel | AM-1024600KTMQW-01H |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 7.0 inch |
| resolusi | 1024(RGB)×600 , WSVGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 153.6×90 mm |
| garis besar | 165.5×104.44×7.91 mm |
| permukaan | Glare (Haze 0%), Hard coating |
| kecerahan | 1000 cd/m² (Typ.) |
| nisbah kontras | 700:1 (Typ.) |
| warna paparan | 16.7M (8-bit) |
| masa tindak balas | 10/15 (Typ.)(Tr/Td) |
| sudut pandangan | 75/75/70/75 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 8S3PWLEDEmbedded (LED Driver) |
| antara muka isyarat | LVDS (1 ch, 8-bit), 20 pins |
| voltan masukan | 3.3V (Typ.) |
| permohonan | IA |
