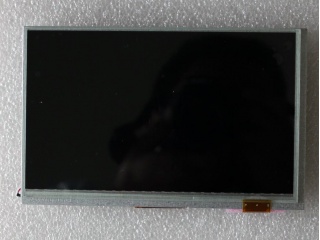

| Nombor Bahagian | AM-1024600K7TMQW-T54H |
| Jenama | AMPIRE |
| Saiz | 7.0 |
| Permohonan | Industrial |
| Resolusi | 1024×600 |
| Komposisi | LCM, a-Si TFT-LCD |
| Kecerahan | |
| CR | 700:1 |
| Warna | 262K/16.7M |
| Lampu latar | 8S3P |
| Antara muka | |
| pengilang | AMPIRE |
| nama model | AM-1024600K7TMQW-T54H |
| saiz skrin | 7.0 inch |
| jenis skrin | LCM, a-Si TFT-LCD |
| nombor piksel | 1024(RGB)×600 (WSVGA) 169PPI |
| susunan | RGB Vertical Stripe |
| kawasan aktif (mm) | 153.6 × 90 (H×V) |
| garis besar (mm) | 165.5 × 104.44 × 10.77 (H×V×D) |
| kecerahan | 850 cd/m² (Typ.) |
| nisbah kontras | 700 : 1 (Typ.) (TM) |
| sudut pandangan | 75/75/70/75 (Typ.)(CR≥10) |
| tindak balas | 20/20 (Typ.)(Tr/Td) ms |
| pandangan yang baik di | 6 o'clock |
| mod kerja | TN, Normally White, Transmissive |
| kedalaman warna | 262K/16.7M |
| lampu latar | 8S3P WLED , 50K hours , With LED Driver |
| jisim | TBD |
| digunakan untuk | Industrial |
| kadar segar semula | 60Hz |
| skrin sentuh | PCAP |
| Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
