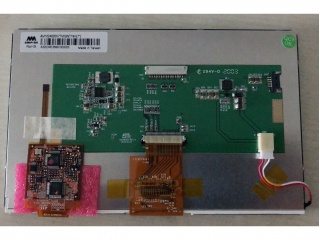

| Nombor Bahagian | AM-1024600K7TMQW-T19H |
| Jenama | AMPIRE |
| Saiz | 7.0 |
| Permohonan | Industrial |
| Resolusi | 1024×600 |
| Komposisi | a-Si TFT-LCD , LCM |
| Kecerahan | |
| CR | 700:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | |
| jenama | AMPIRE |
| saiz pepenjuru | 7.0 inch |
| format piksel | 1024(RGB)×600 [WSVGA] 169PPI |
| kawasan aktif | 153.6(H)×90(V) mm |
| kecerahan | 425 cd/m² (Typ.) |
| arah pandang | 6 o'clock |
| sudut pandangan | 75/75/70/75 (Typ.)(CR≥10) |
| warna sokongan | 16.7M |
| berat badan | TBD |
| kadar bingkai | 60Hz |
| model | AM-1024600K7TMQW-T19H |
| menaip | a-Si TFT-LCD , LCM |
| konfigurasi | RGB Vertical Stripe |
| garis besar malap. | 165.5(H)×104.44(V) ×10.81(D) mm |
| nisbah kontras | 700:1 (Typ.) (TM) |
| masa tindak balas | 20/20 (Typ.)(Tr/Td) |
| mod operasi | TN, Normally White, Transmissive |
| sumber cahaya | WLED [5S3P] , 30K hours , With LED Driver |
| direka untuk | Industrial |
| panel sentuh | PCAP |
