A030DW01 V3

A030DW01 V3

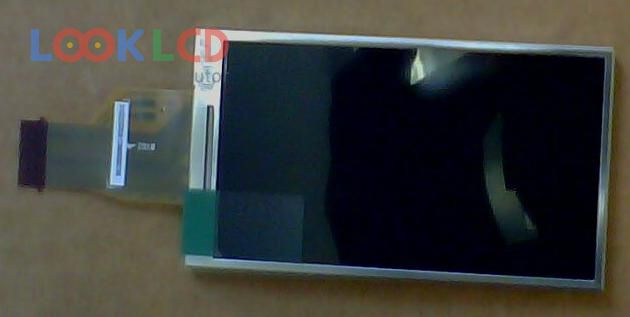

A030DW01 V3 thumb
Jenama
AUO
Saiz
3.0
Permohonan
DSC
Resolusi
320×240
Komposisi
LCM
Kecerahan
350
CR
300:1
Warna
16.7M
Lampu latar
WLED
Antara muka
Serial RGB
In Stock
3115
Spesifikasi

Nombor Bahagian A030DW01 V3
JenamaAUO
Saiz3.0
PermohonanDSC
Resolusi320×240
KomposisiLCM
Kecerahan350
CR300:1
Warna16.7M
Lampu latarWLED
Antara mukaSerial RGB
jenama panelAUO
model panelA030DW01 V3
jenis panel a-Si TFT-LCD , LCM
saiz panel3.0 inch
resolusi320(RGB)×240 , QVGA
mod paparanTN, Normally White, Transmissive
kawasan aktif65.52×36.84 mm
garis besar74.92×42.74 mm
permukaanHard coating
kecerahan350 cd/m² (Typ.)
nisbah kontras300:1 (Typ.)
warna paparan16.7M (8-bit)
masa tindak balas15/20 (Typ.)(Tr/Td)
sudut pandangan60/60/50/60 (Typ.)(CR≥10)(L/R/U/D)
jenis lampu3S1PWLEDWithout Driver
antara muka isyaratSerial RGB (8-bit) + SPI, CCIR601/656, 39 pins
voltan masukan3.3/15/-10V (Typ.)(VDD/VGH/VGL)
permohonanDSC
