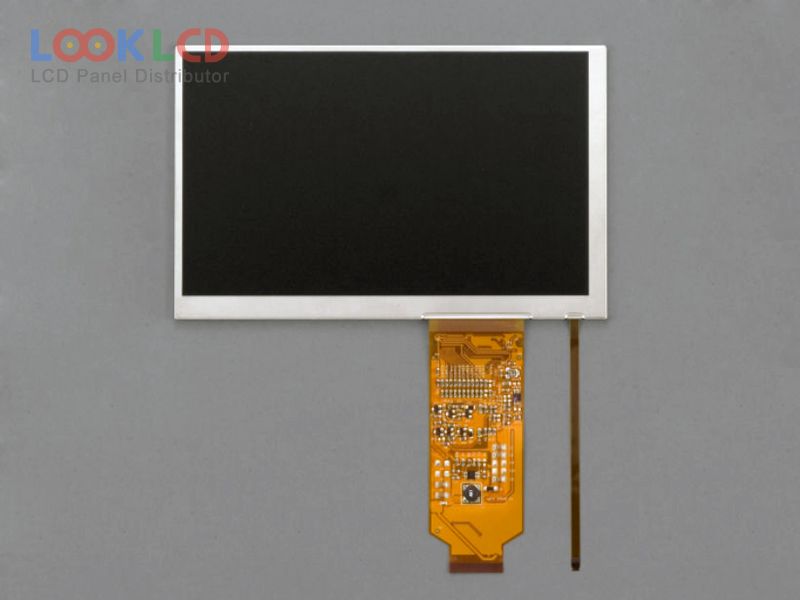

| Nombor Bahagian | 70WVW3A |
| Jenama | SII |
| Saiz | 7.0 |
| Permohonan | CNS |
| Resolusi | 800×480 |
| Komposisi | LCM |
| Kecerahan | 350 |
| CR | 400:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antara muka | TTL |
| jenama panel | SII |
| model panel | 70WVW3A |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 7.0 inch |
| resolusi | 800(RGB)×480 , WVGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 152.4×91.44 mm |
| garis besar | 165×105.8×3.65 mm |
| permukaan | Antiglare |
| kecerahan | 350 cd/m² (Typ.) |
| nisbah kontras | 400:1 (Typ.) |
| warna paparan | 262K (6-bit), CIE193145% |
| masa tindak balas | 5/11 (Typ.)(Tr/Td) |
| sudut pandangan | 70/70/55/65 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 8S3PWLED |
| antara muka isyarat | Parallel RGB (1 ch, 6-bit), 40 pins |
| voltan masukan | 3.3V (Typ.) |
| permohonan | CNS |
