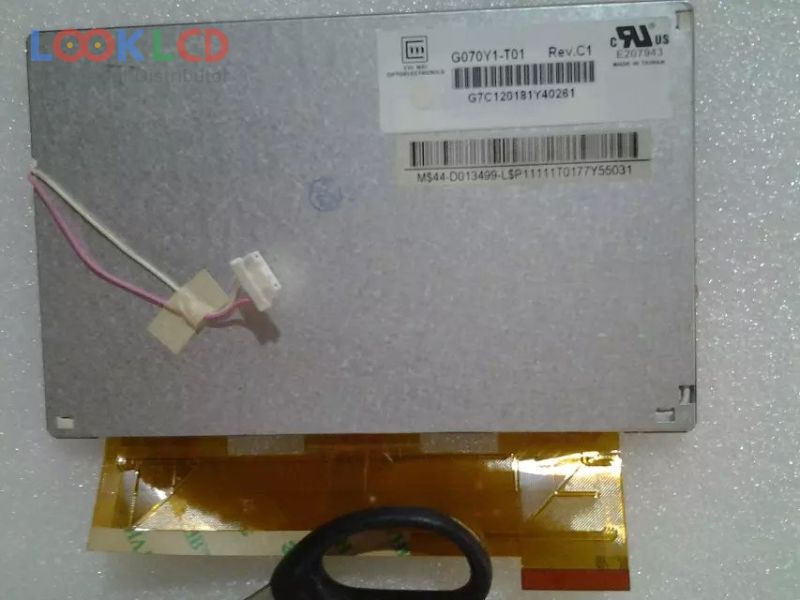

| Nombor Bahagian | G070Y1-T01 |
| Jenama | Innolux |
| Saiz | 7.0 |
| Permohonan | CNS |
| Resolusi | 800×480 |
| Komposisi | LCM |
| Kecerahan | 450 |
| CR | 500:1 |
| Warna | 262K |
| Lampu latar | CCFL |
| Antara muka | TTL |
| jenama panel | CMO |
| model panel | G070Y1-T01 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 7.0 inch |
| resolusi | 800(RGB)×480 , WVGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 152.4×91.44 mm |
| garis besar | 165×104×5.8 mm |
| permukaan | Antiglare (Haze 25%), Hard coating (3H) |
| kecerahan | 450 cd/m² (Typ.) |
| nisbah kontras | 500:1 (Typ.) |
| warna paparan | 262K (6-bit) |
| masa tindak balas | 5/11 (Typ.)(Tr/Td) |
| sudut pandangan | 70/70/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 1 pcsCCFLWithout Driver |
| antara muka isyarat | Parallel RGB (1 ch, 6-bit), 50 pins |
| voltan masukan | 3.3/11.6/18/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
| rohs: | |
| permohonan | CNS |
