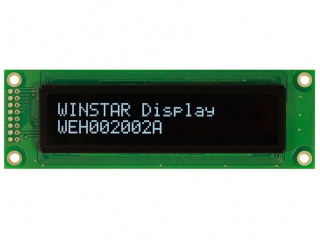

| Nombor Bahagian | WEH002002AW |
| Jenama | Winstar |
| Saiz | 3.1 |
| Permohonan | Instruments & Me |
| Resolusi | 5×8 |
| Komposisi | PM-OLED, OLED |
| Kecerahan | |
| CR | |
| Warna | Mono(White) |
| Lampu latar | self |
| Antara muka | CPU/SPI |
| jenama | Winstar |
| model | WEH002002AW |
| saiz pepenjuru | 3.1 inch |
| menaip | PM-OLED, OLED |
| format char | 5×8 dots |
| Saiz huruf | 3.2×5.55 mm |
| nada fon | 3.9×6.3 mm |
| kawasan aktif | 77.3(H)×11.85(V) mm |
| garis besar malap. | 116(H)×37(V) ×9.8(D) mm |
| kawasan bezel | 85(H)×18.6(V) mm |
| rawatan | - |
| arah pandang | Symmetry |
| masa tindak balas | - |
| sudut pandangan | - |
| mod operasi | - |
| warna sokongan | Mono(White) |
| sumber cahaya | self |
| berat badan | - |
| direka untuk | Instruments & Meters |
| kadar bingkai | - |
| panel sentuh | Without |
| perincian d-ic | COB Built-in WS0010 |
| jenis antara muka | CPU/SPI , 16 pins Pad |
| bekalan kuasa | 5.0V (Typ.) |
