Lumineq EL160.120.39 lembaran data, spesifikasi, stok, aplikasi www.looklcd-my.com
LookLCD LookLCD

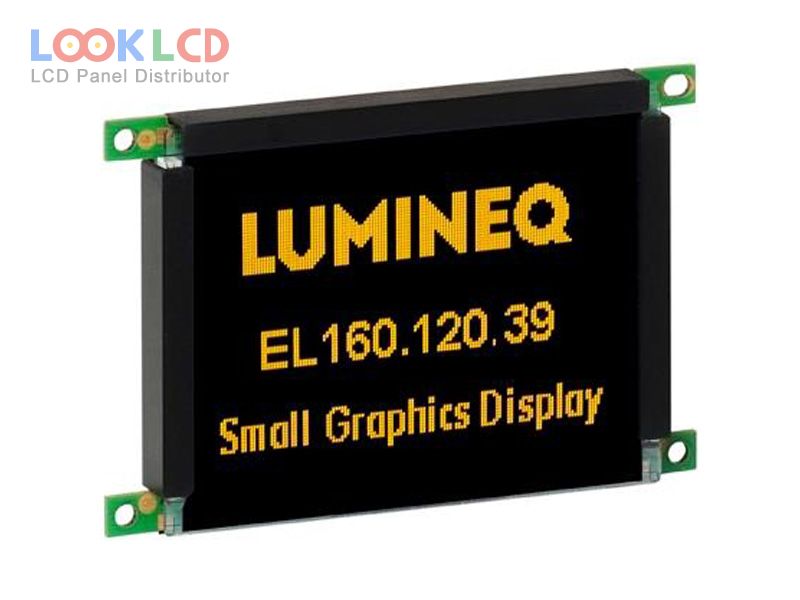

EL160.120.39

EL160.120.39
EL160.120.39 thumb
Jenama
Lumineq
Saiz
3.1
Permohonan
IA
Resolusi
160×120
Komposisi
EL
Kecerahan
70
CR
60:1
Warna
Mono(Yellow)
Lampu latar
self
Antara muka
Parallel Data
In Stock
13300
Spesifikasi

Nombor Bahagian EL160.120.39
JenamaLumineq
Saiz3.1
PermohonanIA
Resolusi160×120
KomposisiEL
Kecerahan70
CR60:1
WarnaMono(Yellow)
Lampu latarself
Antara mukaParallel Data
jenama panelLumineq
model panelEL160.120.39
jenis panel EL , EL
saiz panel3.1 inch
resolusi160×120 , QQVGA
kawasan aktif62.3×46.7 mm
garis besar93.6×61.5 mm
permukaan
kecerahan70 cd/m² (Typ.)
nisbah kontras60 : 1 (Typ.)
warna paparanMono(Yellow) (1-bit)
sudut pandangan89/89/89/89 (Typ.)(L/R/U/D)
kekerapan150Hz
antara muka isyaratParallel Data (1ch, 4-bit), 20 pins
voltan masukan5.25/18V (Typ.)(VL/VH)
permohonanIA
