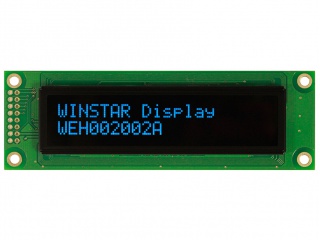

| Nombor Bahagian | WEH002002AB |
| Jenama | Winstar |
| Saiz | 3.1 |
| Permohonan | Instruments & Me |
| Resolusi | 20×26 |
| Komposisi | PM-OLED, OLED |
| Kecerahan | |
| CR | |
| Warna | Mono(Blue) |
| Lampu latar | self |
| Antara muka | CPU/SPI |
| jenama panel | Winstar |
| model panel | WEH002002AB |
| saiz panel | 3.1" |
| jenis panel | PM-OLED, OLED |
| format paparan | 20 characters × 2 lines, 6PPI |
| format fon | 5×8 dots |
| saiz watak | 3.2×5.55(W×H) mm |
| nada watak | 3.9×6.3(W×H) mm |
| kawasan paparan | 77.3(W)×11.85(H) mm |
| pembukaan bezel | 85(W)×18.6(H) mm |
| saiz garis besar | 116(W)×37(H) ×9.8(D) mm |
| permukaan | - |
| sudut pandangan | - |
| mod paparan | - |
| pandangan terbaik pada | Symmetry |
| masa tindak balas | - |
| warna paparan | Mono(Blue) |
| jenis lampu | self |
| kekerapan | - |
| skrin sentuh | Without |
| ic pemandu | COB Built-in WS0010 |
| berat panel | - |
| permohonan | Instruments & Meters |
| antara muka isyarat | CPU/SPI , 16 pins Pad |
| voltan masukan | 5.0V (Typ.) |
