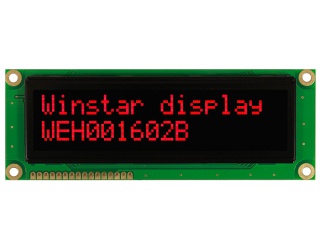

| Nombor Bahagian | WEH001602BR |
| Jenama | Winstar |
| Saiz | 3.7 |
| Permohonan | Instruments & Meters |
| Resolusi | 5×8 |
| Komposisi | PM-OLED , OLED |
| Kecerahan | |
| CR | |
| Warna | Mono(Red) |
| Lampu latar | self |
| Antara muka | CPU/SPI |
| jenama | Winstar |
| saiz pepenjuru | 3.7 inch |
| format char | 5×8 dots |
| Saiz huruf | 4.74×8.9 mm |
| kawasan aktif | 91.14(H)×18.98(V) mm |
| kawasan bezel | 99(H)×24(V) mm |
| arah pandang | Symmetry |
| sudut pandangan | - |
| warna sokongan | Mono(Red) |
| berat badan | - |
| kadar bingkai | - |
| perincian d-ic | COB Built-in WS0010 |
| jenis antara muka | CPU/SPI , 16 pins Pad |
| bekalan kuasa | 5.0V (Typ.) |
| model | WEH001602BR |
| menaip | PM-OLED , OLED |
| nada fon | 5.76×10.08 mm |
| garis besar malap. | 122(H)×44(V) ×10(D) mm |
| rawatan | - |
| masa tindak balas | - |
| mod operasi | - |
| sumber cahaya | self |
| direka untuk | Instruments & Meters |
| panel sentuh | Without |
| 37WVF0H | SII | 3.7 | 480×800 |
| ACX425AKM | SONY | 3.7 | 480×800 |
| AMS369FG03-002 | Samsung | 3.7 | 480×800 |
| HVA37WV1-D01 | HYDIS | 3.7 | 480×800 |
| HVA37WV1-ME0 | HYDIS | 3.7 | 480×800 |
| LS037V7DD05 | SHARP | 3.7 | 480×640 |
| LS037V7DD06 | SHARP | 3.7 | 480×640 |
| LS037V7DD06R | SHARP | 3.7 | 480×640 |
| LS037V7DW03A | SHARP | 3.7 | 480×640 |
| LS037V7DW03B | SHARP | 3.7 | 480×640 |
