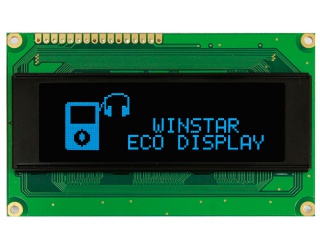

| Nombor Bahagian | WEG010032BB |
| Jenama | Winstar |
| Saiz | 2.4 |
| Permohonan | Instruments & Meters |
| Resolusi | 100×32 |
| Komposisi | OLED , PM-OLED |
| Kecerahan | |
| CR | |
| Warna | Mono(Blue) |
| Lampu latar | self |
| Antara muka | CPU/SPI |
| pengilang | Winstar |
| saiz skrin | 2.4 inch |
| nombor piksel | 100×32 43PPI |
| kawasan aktif (mm) | 58.95 × 19.15 (H×V) |
| kawasan bezel (mm) | 77 × 25.2 (H×V) |
| sudut pandangan | - |
| pandangan yang baik di | Symmetry |
| kedalaman warna | Mono(Blue) |
| jisim | - |
| kadar segar semula | - |
| senarai ic pemandu | Built-in COG WS0010 |
| jenis isyarat | CPU/SPI , 16 pins FPC |
| bekalan voltan | 5.0V (Typ.) |
| nama model | WEG010032BB |
| jenis skrin | OLED , PM-OLED |
| susunan | Rectangle |
| garis besar (mm) | 98 × 60 × 10 (H×V×D) |
| rawatan | - |
| tindak balas | - |
| mod kerja | - |
| lampu latar | self |
| digunakan untuk | Instruments & Meters |
| skrin sentuh | Without |
