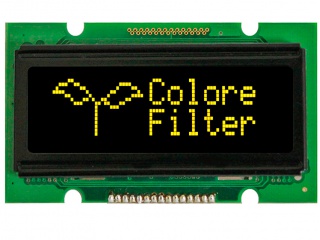

| Nombor Bahagian | WEG007616ABL |
| Jenama | Winstar |
| Saiz | 1.7 |
| Permohonan | Instruments & Me |
| Resolusi | 76×16 |
| Komposisi | OLED, PM-OLED |
| Kecerahan | |
| CR | |
| Warna | Mono(Yellow) |
| Lampu latar | self |
| Antara muka | |
| pengilang | Winstar |
| nama model | WEG007616ABL |
| saiz skrin | 1.7 inch |
| jenis skrin | OLED, PM-OLED |
| nombor piksel | 76×16 45PPI |
| susunan | Rectangle |
| kawasan aktif (mm) | 41.7 × 11.1 (H×V) |
| garis besar (mm) | 55.7 × 32 × 11 (H×V×D) |
| kawasan bezel (mm) | 46 × 14.5 (H×V) |
| rawatan | - |
| sudut pandangan | - |
| tindak balas | - |
| pandangan yang baik di | Symmetry |
| mod kerja | - |
| kedalaman warna | Mono(Yellow) |
| lampu latar | self |
| jisim | - |
| digunakan untuk | Instruments & Meters |
| kadar segar semula | - |
| skrin sentuh | Without |
| 5.0V (Typ.) |
| A017CN01 V1 | AUO | 1.7 | 480×240 |
| A017CN01 V2 | AUO | 1.7 | 480×240 |
| NVK16BSC001G-C-0000 | Neoview Kolon | 1.7 | 80×168 |
| TFT-GG1P0553UTSW-W-E | Other | 1.7 | 176×220 |
| UG-6028GDEBF02 | WiseChip | 1.7 | 160×128 |
