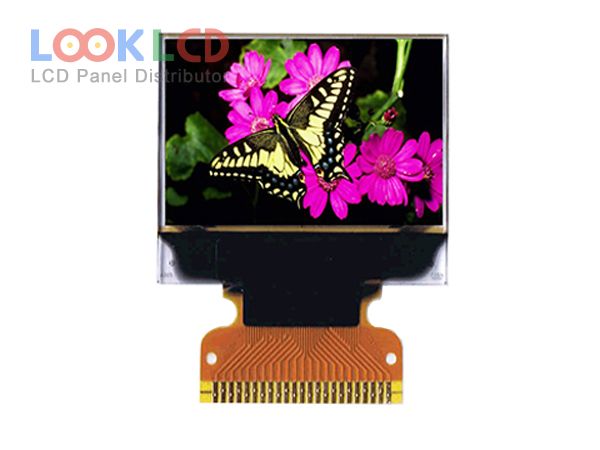

| Nombor Bahagian | UG-9664HDDAG01 |
| Jenama | WiseChip |
| Saiz | 0.95 |
| Permohonan | IA |
| Resolusi | 96×64 |
| Komposisi | OLED |
| Kecerahan | 100 |
| CR | 1000:1 |
| Warna | 65K |
| Lampu latar | self |
| Antara muka | CPU/SPI |
| jenama panel | WiseChip |
| model panel | UG-9664HDDAG01 |
| jenis panel | PM-OLED , OLED |
| saiz panel | 0.95 inch |
| resolusi | 96(RGB)×64 |
| kawasan aktif | 20.14×13.42 mm |
| garis besar | 25.7×22.2×1.6 mm |
| permukaan | |
| kecerahan | 100 cd/m² (Typ.) |
| nisbah kontras | 1000 : 1 (Typ.) |
| warna paparan | 65K |
| sudut pandangan | 80/80/80/80 (Min.)(L/R/U/D) |
| ic pemandu | COG Built-in SSD1331Z |
| antara muka isyarat | 8-bit 6800/8080 parallel, 4-wire SPI, 23 pins |
| voltan masukan | 2.8/2.8/14.0V (Typ.)(VDD/VDDIO/VCC) |
| rohs: | |
| permohonan | IA |
