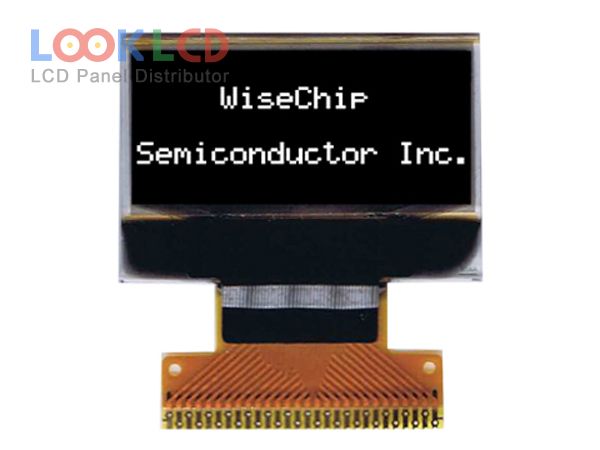

| Nombor Bahagian | UG-9639TSWEG03 |
| Jenama | WiseChip |
| Saiz | 0.82 |
| Permohonan | IA |
| Resolusi | 96×39 |
| Komposisi | OLED |
| Kecerahan | 100 |
| CR | 10000:1 |
| Warna | Mono(White) |
| Lampu latar | self |
| Antara muka | CPU/SPI/I²C |
| jenama panel | WiseChip |
| model panel | UG-9639TSWEG03 |
| jenis panel | PM-OLED , OLED |
| saiz panel | 0.82 inch |
| resolusi | 96×39 |
| kawasan aktif | 19.372×7.858 mm |
| garis besar | 23.8×16.2×1.4 mm |
| permukaan | |
| kecerahan | 100 cd/m² (Typ.) |
| nisbah kontras | 10000 : 1 (Min.) |
| warna paparan | Mono(White) (1-bit) |
| sudut pandangan | |
| ic pemandu | COG Built-in SSD1306 |
| antara muka isyarat | 8-bit 6800/8080 parallel, 4-wire SPI, I²C, 28 pins |
| voltan masukan | 2.8/7.25V (Typ.)(VDD/VCC) |
| rohs: | |
| permohonan | IA |
