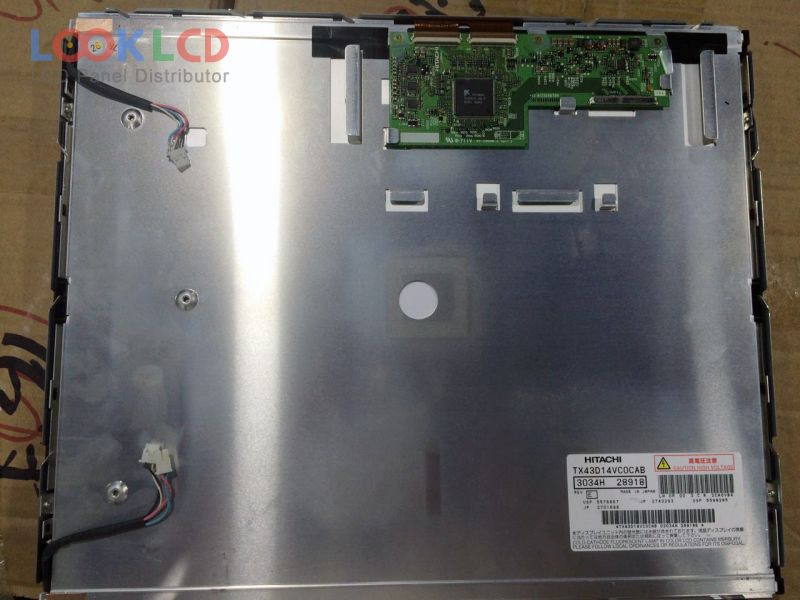

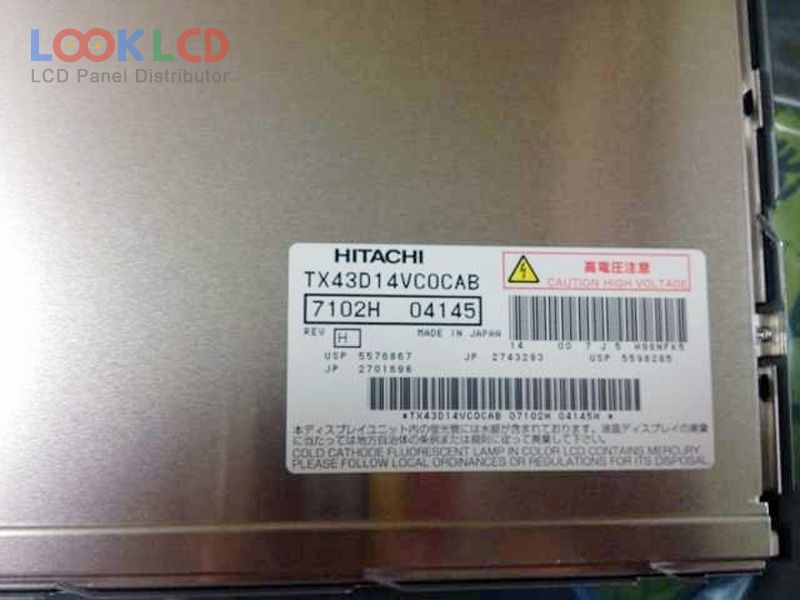

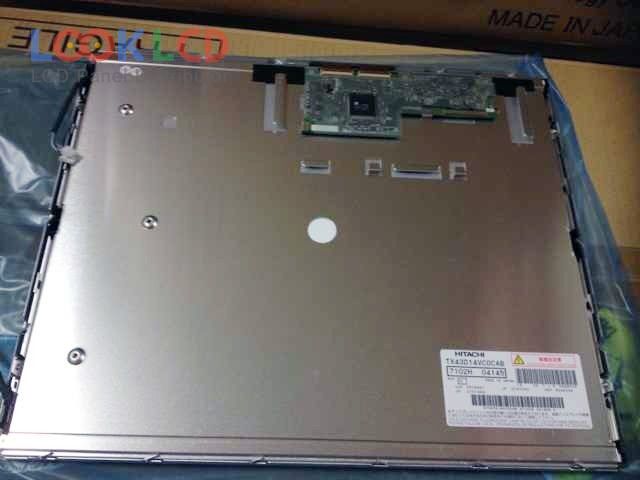

| Nombor Bahagian | TX43D14VC0CAB |
| Jenama | KOE |
| Saiz | 17.0 |
| Permohonan | DMPC |
| Resolusi | 1280×1024 |
| Komposisi | LCM |
| Kecerahan | 230 |
| CR | 400:1 |
| Warna | 16.7M |
| Lampu latar | CCFL |
| Antara muka | LVDS |
| jenama panel | HITACHI |
| model panel | TX43D14VC0CAB |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 17.0 inch |
| resolusi | 1280(RGB)×1024 , SXGA |
| mod paparan | IPS-Pro, Normally Black, Transmissive |
| kawasan aktif | 337.92×270.336 mm |
| garis besar | 368×306 mm |
| permukaan | Antiglare |
| kecerahan | 230 cd/m² (Typ.) |
| nisbah kontras | 400:1 (Typ.) |
| warna paparan | 16.7M (6-bit + Hi-FRC) |
| masa tindak balas | 20/20 (Typ.)(Tr/Td) |
| sudut pandangan | |
| kekerapan | 60Hz |
| jenis lampu | 4 pcsCCFLWithout Driver |
| antara muka isyarat | LVDS (2 ch, 8-bit), 30 pins |
| voltan masukan | 5.0V (Typ.) |
| permohonan | DMPC |
