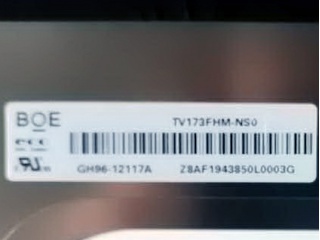

| Nombor Bahagian | TV173FHM-NS0 |
| Jenama | BOE |
| Saiz | 17.3 |
| Permohonan | Pad & Tablet |
| Resolusi | 1920×1080 |
| Komposisi | LCM , a-Si TFT-LCD |
| Kecerahan | |
| CR | 1200:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | eDP |
| pengilang | BOE |
| nama model | TV173FHM-NS0 (BOE07E7) |
| saiz skrin | 17.3 inch |
| jenis skrin | LCM , a-Si TFT-LCD |
| nombor piksel | 1920(RGB)×1080 (FHD) 127PPI |
| susunan | RGB Vertical Stripe |
| kawasan aktif (mm) | 381.888 × 214.812 (H×V) |
| garis besar (mm) | - |
| kawasan bezel (mm) | - |
| rawatan | Antiglare, Hard coating (3H) |
| kecerahan | 480 cd/m² (Typ.) |
| nisbah kontras | 1200 : 1 (Typ.) (TM) |
| sudut pandangan | 85/85/85/85 (Typ.)(CR≥10) |
| tindak balas | 25 (Typ.)(Tr+Td) ms |
| pandangan yang baik di | Symmetry |
| mod kerja | ADS, Normally Black, Transmissive |
| kedalaman warna | 16.7M 71% NTSC |
| lampu latar | WLED , With LED Driver |
| jisim | 470/520g (Typ./Max.) |
| digunakan untuk | Pad & Tablet |
| kadar segar semula | 60Hz |
| skrin sentuh | Without |
| jenis isyarat | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , 45 pins Connector |
| bekalan voltan | 3.3V (Typ.) |
| maks. penilaian | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| B173HAN01.0 | AUO | 17.3 | 1920×1080 |
| B173HW01 V5 | AUO | 17.3 | 1920×1080 |
| HSD173PUW1-A00 | HannStar | 17.3 | 1920×1080 |
| LP173WD1-TLN4 | LG Display | 17.3 | 1600×900 |
| LP173WF1-TLB3 | LG Display | 17.3 | 1920×1080 |
| LP173WF4-SPD1 | LG Display | 17.3 | 1920×1080 |
| LTN173HT02-X01 | Samsung | 17.3 | 1920×1080 |
| LTN173KT01-H01 | Samsung | 17.3 | 1600×900 |
| N173FGE-L23 | Innolux | 17.3 | 1600×900 |
| N173O6-L02 | Innolux | 17.3 | 1600×900 |
