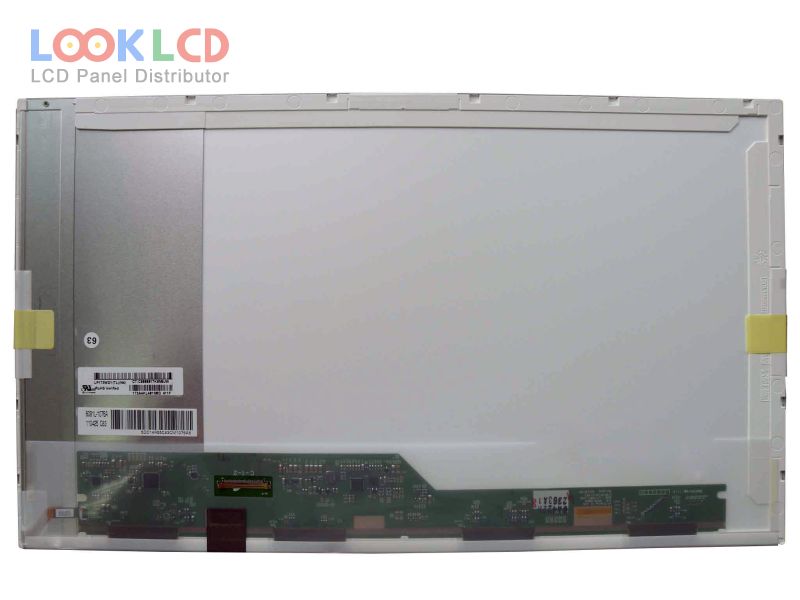

| Nombor Bahagian | LP173WD1-TLN4 |
| Jenama | LG Display |
| Saiz | 17.3 |
| Permohonan | NBPC |
| Resolusi | 1600×900 |
| Komposisi | LCM |
| Kecerahan | 200 |
| CR | 600:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antara muka | LVDS |
| jenama panel | LG Display |
| model panel | LP173WD1-TLN4 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 17.3 inch |
| resolusi | 1600(RGB)×900 , HD+ |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 381.89×214.81 mm |
| garis besar | 398.1×232.8×6 mm |
| gaya bentuk | Wedge (PCBA Bent, Depth ≥5.2mm) |
| permukaan | Glare (Haze 0%) |
| kecerahan | 200 cd/m² (Typ.) |
| nisbah kontras | 600:1 (Typ.) |
| warna paparan | 262K (6-bit), CIE193157% |
| masa tindak balas | 8 (Typ.)(Tr+Td) |
| sudut pandangan | 40/40/10/30 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | WLEDEmbedded (LED Driver) |
| antara muka isyarat | LVDS (2 ch, 6-bit), 40 pins |
| voltan masukan | 3.3V (Typ.) |
| permohonan | NBPC |
