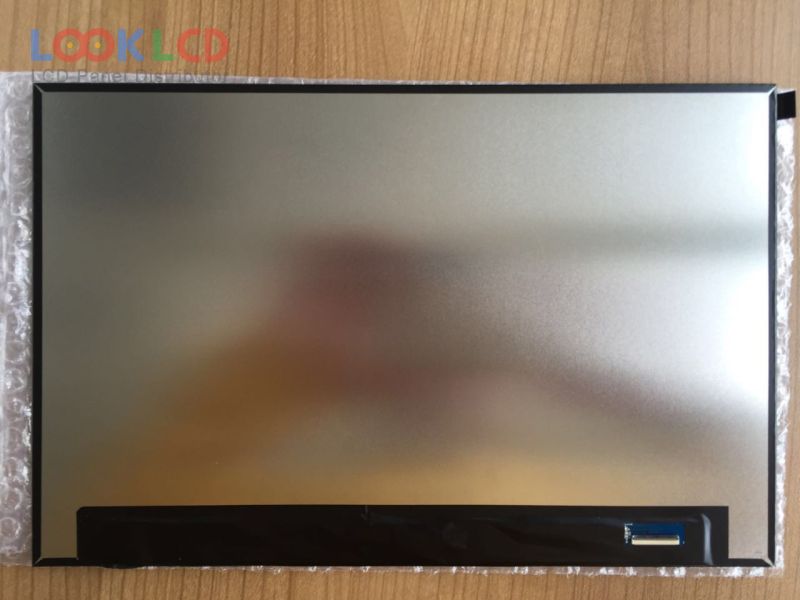

| Nombor Bahagian | TV122WXM-NW0 |
| Jenama | BOE |
| Saiz | 12.2 |
| Permohonan | NBPC |
| Resolusi | 1280×800 |
| Komposisi | LCM |
| Kecerahan | 300 |
| CR | 900:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | eDP |
| jenama panel | BOE |
| model panel | TV122WXM-NW0 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 12.2 inch |
| resolusi | 1280(RGB)×800 , WXGA |
| mod paparan | ADS, Normally Black, Transmissive |
| kawasan aktif | 262.565×164.16 mm |
| garis besar | 271.06×176.42×2.86 mm |
| permukaan | |
| kecerahan | 300 cd/m² (Typ.) |
| nisbah kontras | 900:1 (Typ.) |
| warna paparan | 16.7M (8-bit), CIE193150% |
| masa tindak balas | 30 (Typ.)(Tr+Td) |
| sudut pandangan | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | WLEDWithout Driver |
| antara muka isyarat | eDP (2 Lanes), 39 pins |
| voltan masukan | 3.3V (Typ.) |
| permohonan | NBPC |
