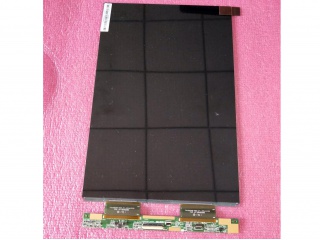

| Nombor Bahagian | TV106WAB-NS0 |
| Jenama | BOE |
| Saiz | 10.6 |
| Permohonan | Pad & Tablet |
| Resolusi | 1280×1920 |
| Komposisi | a-Si TFT-LCD, CELL |
| Kecerahan | |
| CR | 900:1 |
| Warna | 16.7M |
| Lampu latar | No |
| Antara muka | |
| jenama | BOE |
| model | TV106WAB-NS0 |
| saiz pepenjuru | 10.6 inch |
| menaip | a-Si TFT-LCD, CELL |
| format piksel | 1280(RGB)×1920 218PPI |
| konfigurasi | RGB Vertical Stripe |
| kawasan aktif | 148.992(H)×223.488(V) mm |
| garis besar malap. | 153.392(H)×232.688(V) ×0.79(D) mm |
| kawasan bezel | - |
| rawatan | Hard coating (3H) |
| kecerahan | 0 cd/m² |
| nisbah kontras | 900:1 (Typ.) (TM) |
| arah pandang | Symmetry |
| masa tindak balas | 25 (Typ.)(Tr+Td) |
| sudut pandangan | 85/85/85/85 (Typ.)(CR≥10) |
| mod operasi | ADS, Normally Black, Transmissive |
| ketebalan plat | 0.25+0.25 mm |
| penghantaran | - |
| warna sokongan | 16.7M 71% NTSC |
| sumber cahaya | No B/L , W/O Driver |
| berat badan | 62.0g (Max.) |
| direka untuk | Pad & Tablet |
| kadar bingkai | 60Hz |
| panel sentuh | Without |
| Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
