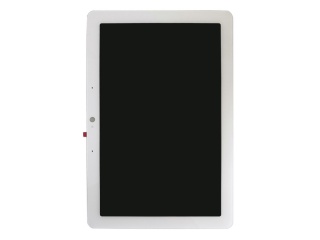

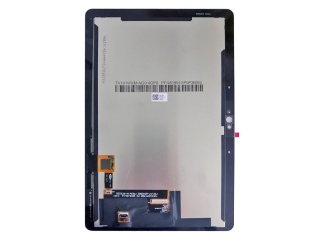

| Nombor Bahagian | TV101WXM-AG0 |
| Jenama | BOE |
| Saiz | 10.1 |
| Permohonan | Pad & Tablet |
| Resolusi | 800×1280 |
| Komposisi | Assembly , a-Si TF |
| Kecerahan | |
| CR | 1000:1 |
| Warna | 16.7M |
| Lampu latar | 6S6P |
| Antara muka | MIPI |
| pengilang | BOE |
| nama model | TV101WXM-AG0 |
| saiz skrin | 10.1 inch |
| jenis skrin | Assembly , a-Si TFT-LCD |
| nombor piksel | 800(RGB)×1280 (WXGA) 150PPI |
| susunan | RGB Vertical Stripe |
| kawasan aktif (mm) | 135.322 × 216.463 (H×V) |
| garis besar (mm) | 164 × 245.2 (H×V×D) |
| kawasan bezel (mm) | - |
| rawatan | Anti Fingerprint, Hard coating (7H) |
| kecerahan | 400 cd/m² (Typ.) |
| nisbah kontras | 1000 : 1 (Typ.) (TM) |
| sudut pandangan | 85/85/85/85 (Typ.)(CR≥10) |
| tindak balas | 30 (Typ.)(Tr+Td) ms |
| pandangan yang baik di | Symmetry |
| mod kerja | - |
| kedalaman warna | 16.7M 57% NTSC |
| lampu latar | 6S6P WLED , 15K hours , No Driver |
| jisim | 300g (Max.) |
| digunakan untuk | Pad & Tablet |
| kadar segar semula | 60Hz |
| skrin sentuh | PCAP |
| jenis isyarat | MIPI (4 data lanes) , 51 pins Connector |
| bekalan voltan | 3.3/5.5/-5.5V (Typ.)(VDDIO/AVDD/AVEE) |
| maks. penilaian | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| CLAA101NC01CW | CPT | 10.1 | 1024×600 |
| EJ101IA-01C | Innolux | 10.1 | 1280×800 |
| HSD101PWW1-B00-C11 | HannStar | 10.1 | 1280×800 |
| LP101WX2-SLA1 | LG Display | 10.1 | 1280×800 |
| LTL101DL03-T01 | Samsung | 10.1 | 2560×1600 |
| M101NWWB R6 | IVO | 10.1 | 1280×800 |
| TV101WUM-NH0 | BOE | 10.1 | 1200×1920 |
| TV101WXM-NP0 | BOE | 10.1 | 1280×800 |
| TV101WXM-NP1 | BOE | 10.1 | 1280×800 |
| YX101GL-01A | SEBO | 10.1 | 1280×800 |
