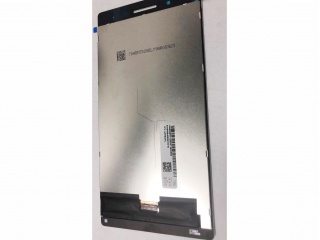

| Nombor Bahagian | TV070HDM-TL0-39P0 |
| Jenama | BOE |
| Saiz | 7.0 |
| Permohonan | Pad & Tablet |
| Resolusi | 720×1280 |
| Komposisi | a-Si TFT-LCD, Assemb |
| Kecerahan | |
| CR | 900:1 |
| Warna | 16.7M |
| Lampu latar | 6S3P |
| Antara muka | MIPI |
| jenama panel | BOE |
| model panel | TV070HDM-TL0-39P0 |
| saiz panel | 7.0" |
| jenis panel | a-Si TFT-LCD, Assembly |
| resolusi | 720(RGB)×1280, WXGA, 209PPI |
| format piksel | RGB Vertical Stripe |
| kawasan paparan | 87.2654(W)×155.136(H) mm |
| pembukaan bezel | - |
| saiz garis besar | 93.08(W)×183.38(H) mm |
| permukaan | Hard coating |
| kecerahan | 350 cd/m² (Typ.) |
| nisbah kontras | 900:1 (Typ.) (TM) |
| sudut pandangan | 80/80/80/80 (Typ.)(CR≥10) |
| mod paparan | - |
| pandangan terbaik pada | Symmetry |
| masa tindak balas | 30 (Typ.)(Tr+Td) |
| warna paparan | 16.7M 55% NTSC |
| jenis lampu | 6S3P WLED , Without Driver |
| kekerapan | 60Hz |
| skrin sentuh | On-Cell Touch |
| berat panel | 130g (Max.) |
| permohonan | Pad & Tablet |
| antara muka isyarat | MIPI (4 data lanes) , 39 pins Connector |
| voltan masukan | 1.8/5.0/-5.0V (Typ.)(VDDI/VSP/VSN) |
| persekitaran | Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C |
