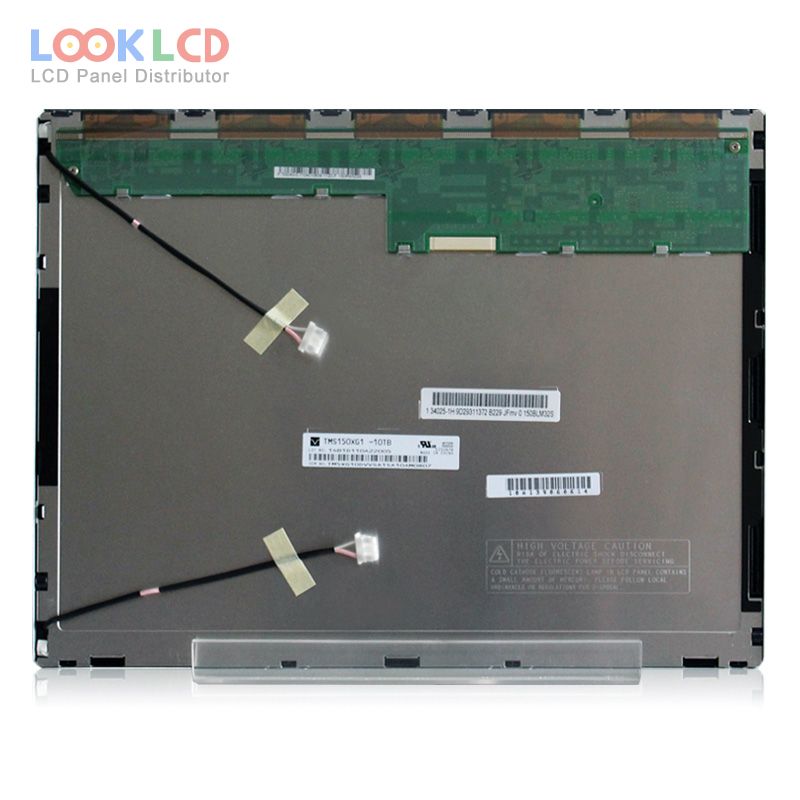

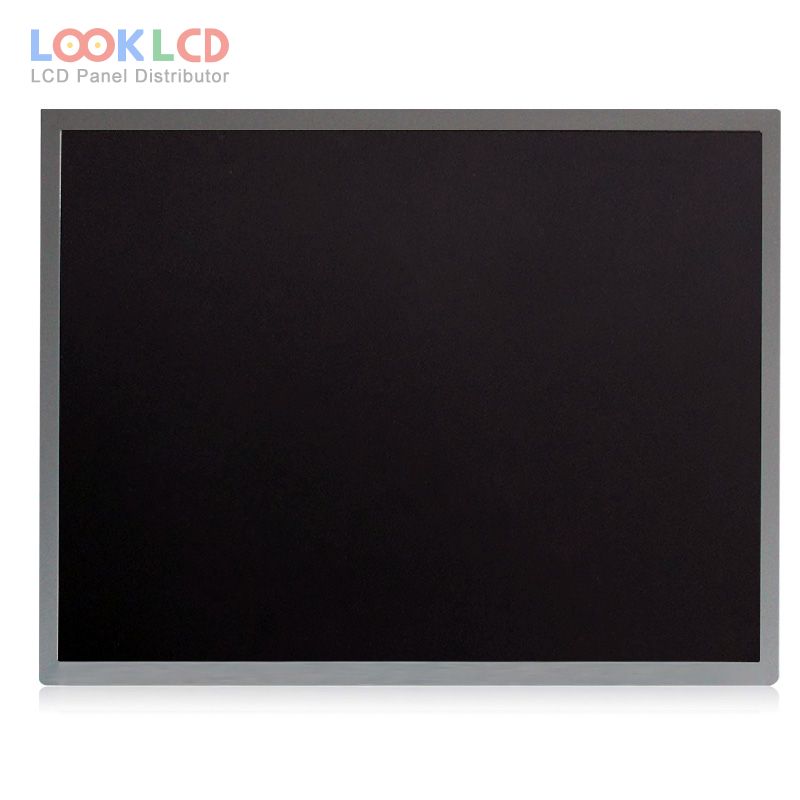

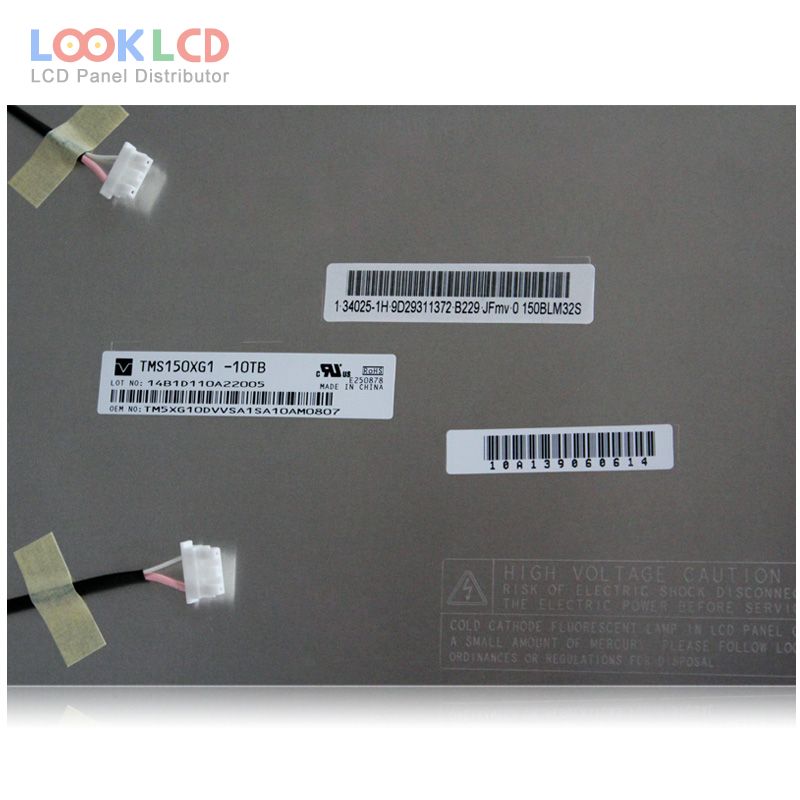

| Nombor Bahagian | TMS150XG1-10TB Rev.E |
| Jenama | Tianma |
| Saiz | 15.0 |
| Permohonan | DMPC |
| Resolusi | 1024×768 |
| Komposisi | LCM |
| Kecerahan | 250 |
| CR | 600:1 |
| Warna | 16.7M |
| Lampu latar | CCFL |
| Antara muka | LVDS |
| jenama panel | AVIC |
| model panel | TMS150XG1-10TB Rev.E |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 15.0 inch |
| resolusi | 1024(RGB)×768 , XGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 304.128×228.096 mm |
| garis besar | 326.5×253.5 mm |
| permukaan | Antiglare, Hard coating |
| kecerahan | 250 cd/m² (Typ.) |
| nisbah kontras | 600:1 (Typ.) |
| warna paparan | 16.7M (6-bit + Hi-FRC), CIE193160% |
| masa tindak balas | 8 (Typ.)(Tr+Td) |
| sudut pandangan | 45/45/25/45 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 2 pcsCCFL |
| antara muka isyarat | LVDS (1 ch, 8-bit) |
| voltan masukan | 3.3V (Typ.) |
| permohonan | DMPC |
| AA150XN03 | Mitsubishi | 15.0 | 1024×768 |
| G150XTN06.0 | AUO | 15.0 | 1024×768 |
| HSD150PX16-A | HannStar | 15.0 | 1024×768 |
| HT15X23-100 | HYDIS | 15.0 | 1024×768 |
| LP150X09-B5K8 | LG Display | 15.0 | 1024×768 |
| LQ150X1LW72 | SHARP | 15.0 | 1024×768 |
| LTN150X5-L02 | Samsung | 15.0 | 1024×768 |
| N150P2-L04 | IDTech | 15.0 | 1400×1050 |
| TMS150XG1-10TB | Tianma | 15.0 | 1024×768 |
| TMS150XG1-10TB Rev.E | Tianma | 15.0 | 1024×768 |
| HSD190ME13-A13 | HannStar | 19.0 | 1280×1024 |
| HT170E02-100 | BOE | 17.0 | 1280×1024 |
| LM171WX3-TLC2 | LG Display | 17.1 | 1440×900 |
| LM215WF2-SLC1 | LG Display | 21.5 | 1920×1080 |
| LM230WF3-SLB1 | LG Display | 23.0 | 1920×1080 |
| LTM230TT01 | Samsung | 23.0 | 2048×1152 |
| M170EG01 V5 | AUO | 17.0 | 1280×1024 |
| M240HW01 VC | AUO | 24.0 | 1920×1080 |
| MT200LW02 V.0 | Innolux | 20.0 | 1600×900 |
| NL10276AC28-05R | NLT | 14.1 | 1024×768 |
