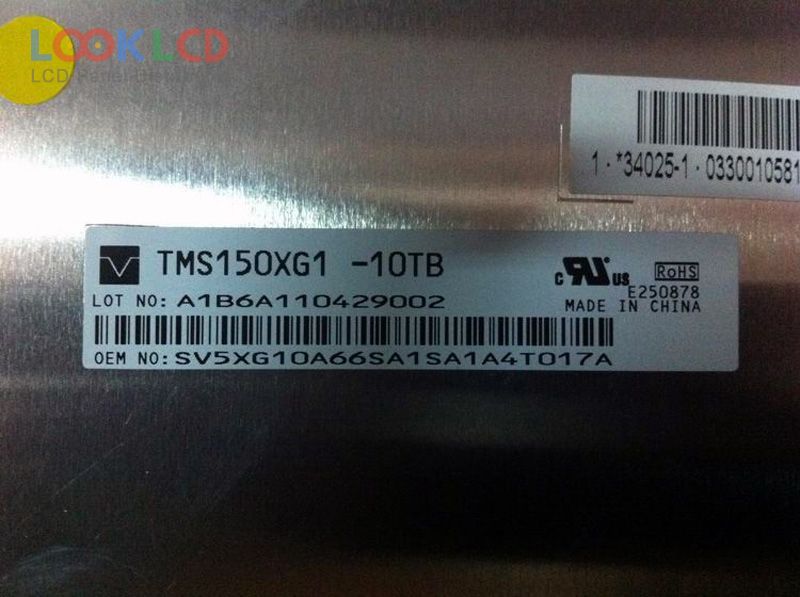

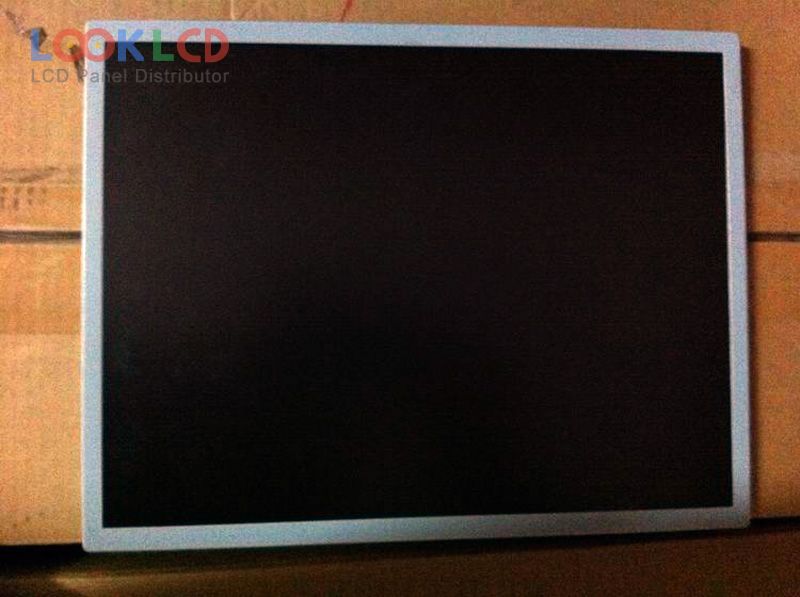

| Nombor Bahagian | TMS150XG1-10TB |
| Jenama | Tianma |
| Saiz | 15.0 |
| Permohonan | DMPC |
| Resolusi | 1024×768 |
| Komposisi | LCM |
| Kecerahan | 250 |
| CR | 600:1 |
| Warna | 16.7M |
| Lampu latar | CCFL |
| Antara muka | LVDS |
| jenama panel | AVIC |
| model panel | TMS150XG1-10TB |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 15.0 inch |
| resolusi | 1024(RGB)×768 , XGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 304.128×228.096 mm |
| garis besar | 326.5×253.5×12 mm |
| permukaan | Antiglare |
| kecerahan | 250 cd/m² (Typ.) |
| nisbah kontras | 600:1 (Typ.) |
| warna paparan | 16.7M (6-bit + Hi-FRC), CIE193160% |
| masa tindak balas | 2/6 (Typ.)(Tr/Td) |
| sudut pandangan | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 2 pcsCCFLWithout Driver |
| antara muka isyarat | LVDS (1 ch, 8-bit), 20 pins |
| voltan masukan | 3.3V (Typ.) |
| permohonan | DMPC |
