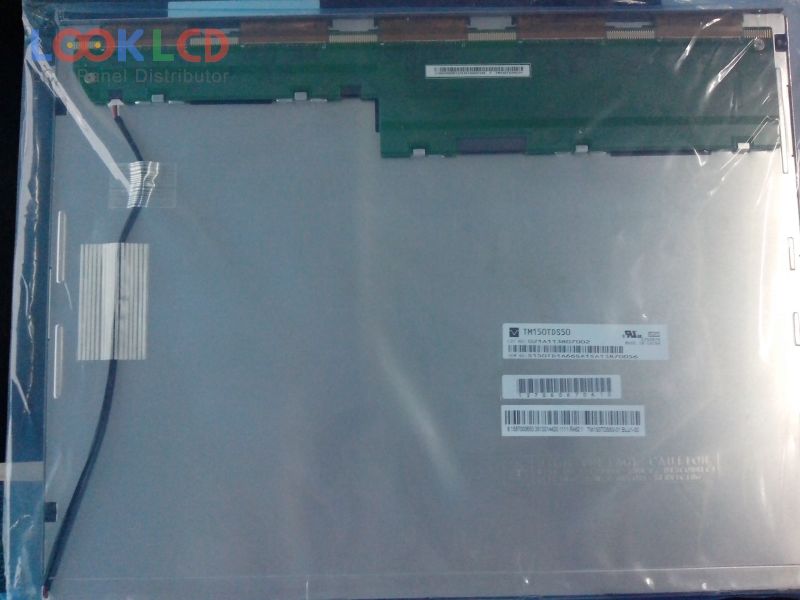

| Nombor Bahagian | TM150TDS50 |
| Jenama | Tianma |
| Saiz | 15.0 |
| Permohonan | IA |
| Resolusi | 1024×768 |
| Komposisi | LCM |
| Kecerahan | 400 |
| CR | 600:1 |
| Warna | 262K/16.7M |
| Lampu latar | WLED |
| Antara muka | LVDS |
| jenama panel | TIANMA |
| model panel | TM150TDS50 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 15.0 inch |
| resolusi | 1024(RGB)×768 , XGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 304.128×228.096 mm |
| garis besar | 326.5×253.5×12.1 mm |
| permukaan | Antiglare |
| kecerahan | 400 cd/m² (Typ.) |
| nisbah kontras | 600:1 (Typ.) |
| warna paparan | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193160% |
| masa tindak balas | 3/5 (Typ.)(Tr/Td) |
| sudut pandangan | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | WLEDEmbedded (LED Driver) |
| antara muka isyarat | LVDS (1 ch, 6/8-bit), 20 pins |
| voltan masukan | 3.3V (Typ.) |
| permohonan | IA |
