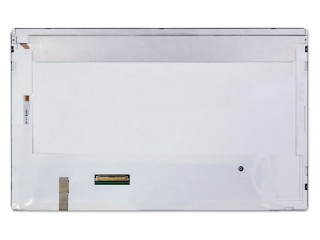

| Nombor Bahagian | TM101DDHG01-60 |
| Jenama | TIANMA |
| Saiz | 10.1 |
| Permohonan | Industrial Automotiv |
| Resolusi | 1024×600 |
| Komposisi | a-Si TFT-LCD , LCM |
| Kecerahan | |
| CR | 800:1 |
| Warna | 262K/16.7M |
| Lampu latar | WLED |
| Antara muka | |
| jenama panel | TIANMA |
| saiz panel | 10.1" |
| resolusi | 1024(RGB)×600, WSVGA, 117PPI |
| kawasan paparan | 222.72(W)×125.28(H) mm |
| saiz garis besar | 235(W)×143(H) ×5.4(D) mm |
| kecerahan | 450 cd/m² (Typ.) |
| sudut pandangan | 80/80/75/80 (Typ.)(CR≥10) |
| pandangan terbaik pada | 12 o'clock |
| warna paparan | 262K/16.7M 47% NTSC |
| kekerapan | 60Hz |
| berat badan | 202g (Typ.) |
| model panel | TM101DDHG01-60 |
| jenis panel | a-Si TFT-LCD , LCM |
| format piksel | RGB Vertical Stripe |
| pembukaan bezel | 225.52(W)×128.10(H) mm |
| permukaan | Antiglare, Hard coating (3H) |
| nisbah kontras | 800:1 (Typ.) (TM) |
| mod paparan | TN, Normally White, Transmissive |
| masa tindak balas | 7/9 (Typ.)(Tr/Td) |
| jenis lampu | WLED , 30K hours , With LED Driver |
| skrin sentuh | Without |
| permohonan | Industrial Automotive Display |
