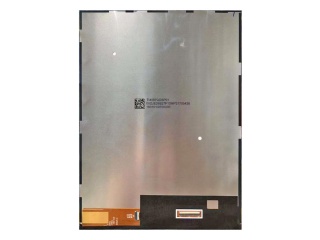

| Nombor Bahagian | TM097QDSP01 |
| Jenama | TIANMA |
| Saiz | 9.7 |
| Permohonan | Pad & Tablet |
| Resolusi | 1536×2048 |
| Komposisi | LCM , a-Si TFT-LCD |
| Kecerahan | |
| CR | 1000:1 |
| Warna | 16.7M |
| Lampu latar | 6S6P |
| Antara muka | MIPI |
| pengilang | TIANMA |
| nama model | TM097QDSP01 |
| saiz skrin | 9.7 inch |
| jenis skrin | LCM , a-Si TFT-LCD |
| nombor piksel | 1536(RGB)×2048 (QXGA) 264PPI |
| susunan | RGB Vertical Stripe |
| kawasan aktif (mm) | 147.456 × 196.608 (H×V) |
| garis besar (mm) | 154.016 × 207.83 × 3.75 (H×V×D) |
| kawasan bezel (mm) | - |
| rawatan | Hard coating |
| kecerahan | 460 cd/m² (Typ.) |
| nisbah kontras | 1000 : 1 (Typ.) (TM) |
| sudut pandangan | 89/89/89/89 (Typ.)(CR≥10) |
| tindak balas | 25 (Typ.)(Tr+Td) ms |
| pandangan yang baik di | Symmetry |
| mod kerja | SFT, Normally Black, Transmissive |
| kedalaman warna | 16.7M 72% NTSC |
| lampu latar | 6S6P WLED , No Driver |
| jisim | 110g (Typ.) |
| digunakan untuk | Pad & Tablet |
| kadar segar semula | 60Hz |
| skrin sentuh | Without |
| jenis isyarat | MIPI (2 ch, 4 data lanes) , 61 pins Connector |
| bekalan voltan | 1.8/5.0/-5.0V (Typ.)(VDDI/AVDD/AVEE) |
| maks. penilaian | Storage Temp.: -30 ~ 70 °C Operating Temp.: -10 ~ 60 °C |
| BF097XN | Innolux | 9.7 | 1024×768 |
| LP097QX1-SPA1 | LG Display | 9.7 | 2048×1536 |
| LP097QX1-SPAV | LG Display | 9.7 | 2048×1536 |
| LP097QX2-SPAV | LG Display | 9.7 | 1536×2048 |
| LP097QX3-SPAV | LG Display | 9.7 | 1536×2048 |
| LP097X02-SLQ1 | LG Display | 9.7 | 1024×768 |
| LQ097L1JY01A | SHARP | 9.7 | 2048×1536 |
| LTN097XL01-A01 | Samsung | 9.7 | 1024×768 |
| TM097TDH01 | Tianma | 9.7 | 1024×768 |
| TM097TDH02 | Tianma | 9.7 | 1024×768 |
