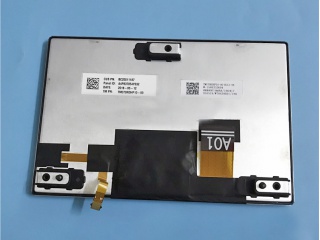

| Nombor Bahagian | TM070RDHP10-00 |
| Jenama | TIANMA |
| Saiz | 7.0 |
| Permohonan | Automotive Display |
| Resolusi | 800×480 |
| Komposisi | a-Si TFT-LCD, LCM |
| Kecerahan | |
| CR | 1000:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | Parallel |
| jenama | TIANMA |
| model | TM070RDHP10-00 |
| saiz pepenjuru | 7.0 inch |
| menaip | a-Si TFT-LCD, LCM |
| format piksel | 800(RGB)×480 [WVGA] 133PPI |
| konfigurasi | RGB Vertical Stripe |
| kawasan aktif | 152.4(H)×91.44(V) mm |
| garis besar malap. | 165.1(H)×108.44(V) ×13(D) mm |
| kawasan bezel | 155.4(H)×94.44(V) mm |
| rawatan | Antiglare, Hard coating (3H) |
| kecerahan | 1000 cd/m² (Typ.) |
| nisbah kontras | 1000:1 (Typ.) (TM) |
| arah pandang | Symmetry |
| masa tindak balas | 35 (Max.)(Tr+Td) |
| sudut pandangan | 88/88/88/88 (Typ.)(CR≥10) |
| mod operasi | SFT, Normally Black, Transmissive |
| warna sokongan | 16.7M 71% NTSC |
| sumber cahaya | WLED [8S2P] , 10K hours , W/O Driver |
| berat badan | 180g (Max.) |
| direka untuk | Automotive Display |
| kadar bingkai | 60Hz |
| panel sentuh | Without |
| jenis antara muka | Parallel RGB (1 ch, 6/8-bit) , 40 pins FPC |
| bekalan kuasa | 3.3V (Typ.) |
| persekitaran | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -45 ~ 95 °C ; Vibration Level: 3.0G (29.4 m/s²) |
