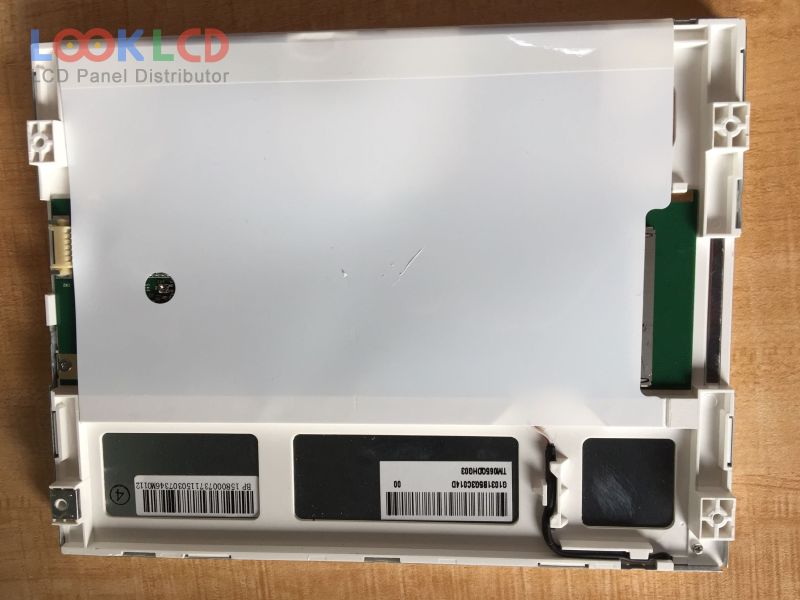

| Nombor Bahagian | TM065QDHG03 |
| Jenama | Tianma |
| Saiz | 6.5 |
| Permohonan | IA |
| Resolusi | 640×480 |
| Komposisi | LCM |
| Kecerahan | |
| CR | 500:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antara muka | LVDS |
| jenama panel | TIANMA |
| model panel | TM065QDHG03 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 6.5 inch |
| resolusi | 640(RGB)×480 , VGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 132.48×99.36 mm |
| permukaan | Antireflection |
| kecerahan | |
| nisbah kontras | 500:1 (Typ.) |
| warna paparan | 262K (6-bit), CIE193150% |
| masa tindak balas | 20 (Typ.)(Tr+Td) |
| sudut pandangan | 70/70/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | WLED |
| antara muka isyarat | LVDS (1 ch, 6-bit), 20 pins |
| voltan masukan | 3.3V (Typ.) |
| permohonan | IA |
| AA065VB01 | Mitsubishi | 6.5 | 640×480 |
| C065GW01 V0 | AUO | 6.5 | 400×234 |
| C065GW04 V1 | AUO | 6.5 | 400×240 |
| C065GW04 V2 | AUO | 6.5 | 400×240 |
| DJ065NA-01C | Innolux | 6.5 | |
| L5F30818P04 | SONY | 6.5 | 800×480 |
| LQ065T5DG05 | SHARP | 6.5 | 480×234 |
| LQ065T9BR51U | SHARP | 6.5 | 400×240 |
| LQ065T9DR51U | SHARP | 6.5 | 400×240 |
| TM065QDHG03 | Tianma | 6.5 | 640×480 |
| A050BTS30R0 | Aptus | 5.0 | 480×480 |
| AA084SB11 | Mitsubishi | 8.4 | 800×600 |
| AA150XN01 | Mitsubishi | 15.0 | 1024×768 |
| EG4401S-ER | Epson | 5.3 | 256×128 |
| EL320.240.36 HB NE CC | PLANAR | 5.7 | 320×240 |
| G215HVN01.1 S03 | AUO | 21.5 | 1920×1080 |
| LM-EH53-22NTK | SANYO | 10.4 | 640×480 |
| NL4823BC37-05 | NLT | 7.0 | 480×234 |
| RX215-C10 | ROGIN | 21.5 | 1920×1080 |
| TLX-1741-C3M | TOSHIBA | 5.4 | 240×128 |
