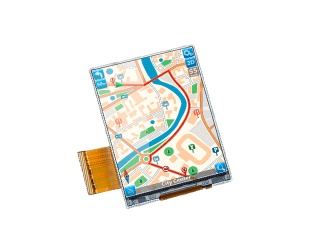

| Nombor Bahagian | TM035HDHP13 |
| Jenama | TIANMA |
| Saiz | 3.5 |
| Permohonan | Outdoor High Brightn |
| Resolusi | 240×320 |
| Komposisi | a-Si TFT-LCD , LCM |
| Kecerahan | |
| CR | 800:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antara muka | |
| jenama panel | TIANMA |
| saiz panel | 3.5" |
| resolusi | 240(RGB)×320, QVGA, 114PPI |
| kawasan paparan | 53.28(W)×71.04(H) mm |
| saiz garis besar | 64(W)×85(H) mm |
| kecerahan | 1000 cd/m² (Typ.) |
| sudut pandangan | 88/88/88/88 (Typ.)(CR≥10) |
| pandangan terbaik pada | Symmetry |
| warna paparan | 262K 60% NTSC |
| berat badan | - |
| model panel | TM035HDHP13 |
| jenis panel | a-Si TFT-LCD , LCM |
| format piksel | RGB Vertical Stripe |
| pembukaan bezel | - |
| permukaan | Antiglare |
| nisbah kontras | 800:1 (Typ.) (TM) |
| mod paparan | SFT, Normally Black, Transmissive |
| masa tindak balas | - |
| jenis lampu | WLED , 20K hours |
| permohonan | Outdoor High Brightness Handheld & PDA |
