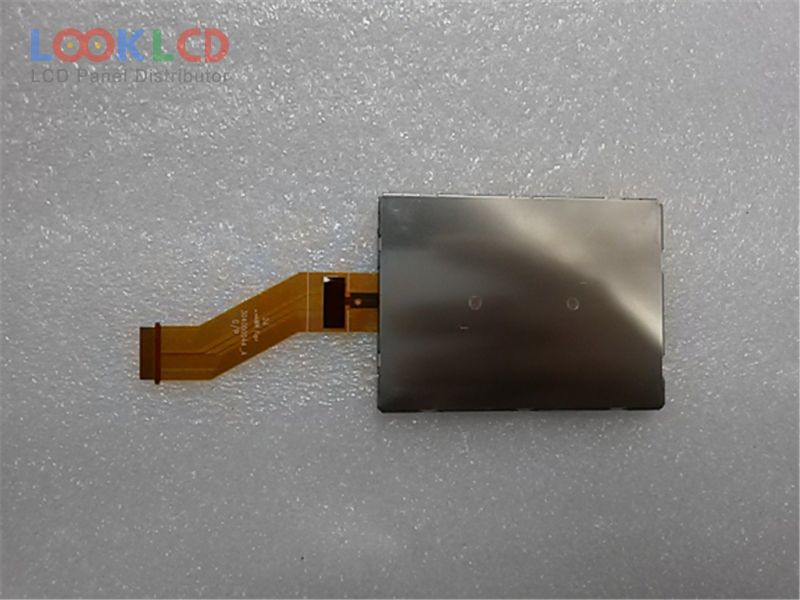

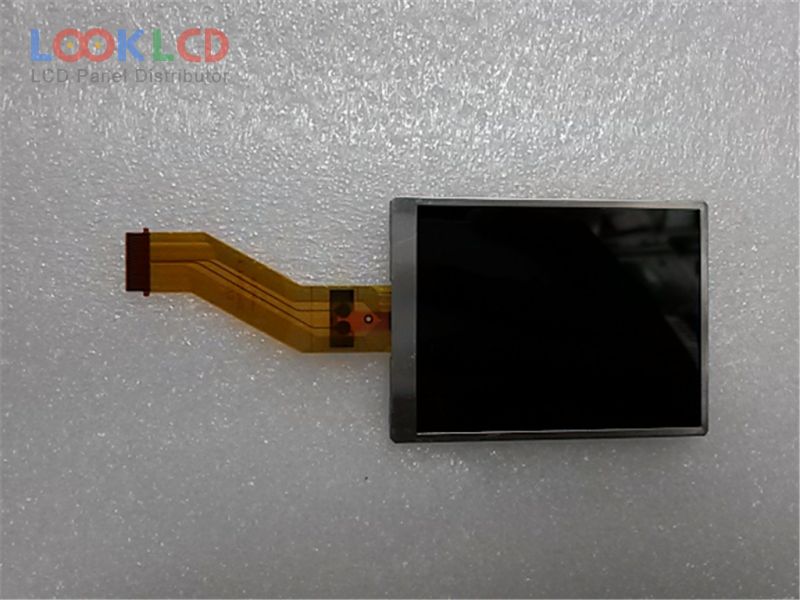

| Nombor Bahagian | TD030MHEB3 |
| Jenama | TPO |
| Saiz | 3.0 |
| Permohonan | DSC |
| Resolusi | 320×240 |
| Komposisi | LCM |
| Kecerahan | |
| CR | 270:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | Serial RGB |
| jenama panel | TPO |
| model panel | TD030MHEB3 |
| jenis panel | LTPS TFT-LCD , LCM |
| saiz panel | 3.0 inch |
| resolusi | 320(RGB)×240 , QVGA |
| mod paparan | TN, Normally White |
| kawasan aktif | 60.3×45 mm |
| permukaan | |
| kecerahan | |
| nisbah kontras | 270 : 1 (Typ.) |
| warna paparan | 16.7M (8-bit) |
| masa tindak balas | 30/10 (Typ.)(Tr/Td) |
| sudut pandangan | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| jenis lampu | WLED |

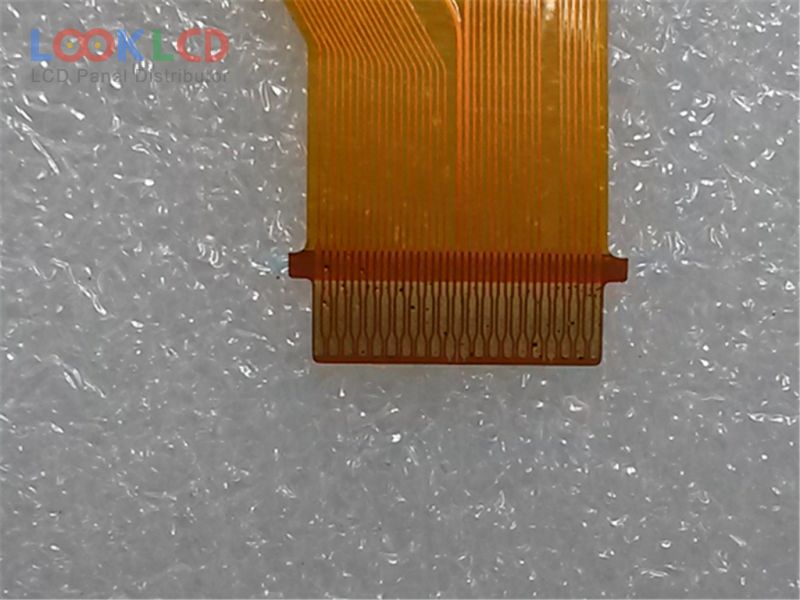

| antara muka isyarat | Serial RGB (8-bit) + SPI, 30 pins |
| voltan masukan | 3.3V (Typ.) |
| rohs: | |
| permohonan | DSC |
| A030DN01 V0 | AUO | 3.0 | 320×240 |
| A030DN04 V0 | AUO | 3.0 | 320×240 |
| AL2004A | Other | 3.0 | 20×4 |
| C-51505NFQJ-LG-AKN | Kyocera | 3.0 | 20×2 |
| LS030B3UX07 | SHARP | 3.0 | 240×400 |
| LS030Y7PW01 | SHARP | 3.0 | |
| TD030MHEB3 | TPO | 3.0 | 320×240 |
| TD030WHEA1 | TPO | 3.0 | 320×240 |
| TFTMD030011 | JDI | 3.0 | 720×480 |
| TM030CDH51-00 | Tianma | 3.0 | 320×240 |
| A015AN04 V6 | AUO | 1.5 | 280×220 |
| A027DN03 V2 | AUO | 2.7 | 320×240 |
| A027DN04 V4 | AUO | 2.7 | 320×240 |
| A027DN04 V7 | AUO | 2.7 | 320×240 |
| A027DTN01.3 | AUO | 2.7 | 320×240 |
| A030DN05 V0 | AUO | 3.0 | 320×240 |
| CLAA030HA22DE | CPT | 3.0 | 960×480(dot) |
| LTV350QV-F07 | Samsung | 3.5 | 320×240 |
| TD024THEB2 | TPO | 2.4 | 480×240 |
| TD024THEB5 | TPO | 2.4 | 480×240 |
