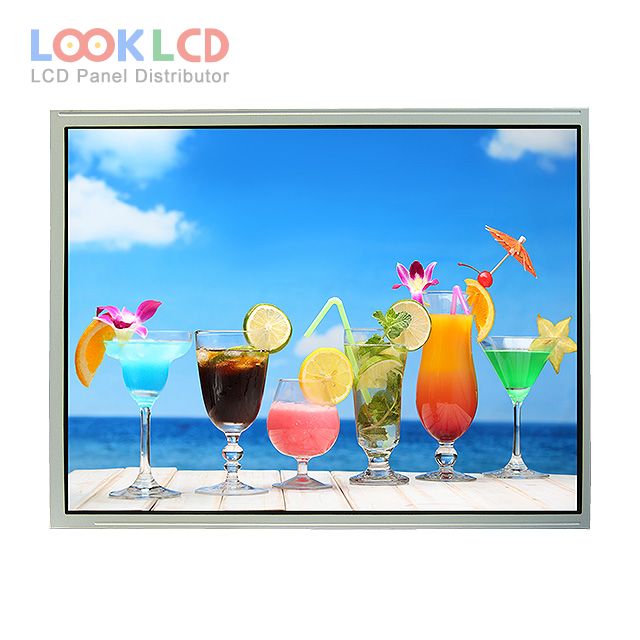

| Nombor Bahagian | TCG121XGLPAPNN-AN20 |
| Jenama | Kyocera |
| Saiz | 12.1 |
| Permohonan | IA |
| Resolusi | 1024×768 |
| Komposisi | LCM |
| Kecerahan | 400 |
| CR | 750:1 |
| Warna | 262K/16.7M |
| Lampu latar | WLED |
| Antara muka | LVDS |
| jenama panel | Kyocera |
| model panel | TCG121XGLPAPNN-AN20 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 12.1 inch |
| resolusi | 1024(RGB)×768 , XGA |
| mod paparan | AWV, Normally Black, Transmissive |
| kawasan aktif | 245.76×184.32 mm |
| garis besar | 260.5×203.4×10.8 mm |
| permukaan | Antiglare |
| kecerahan | 400 cd/m² (Typ.) |
| nisbah kontras | 750:1 (Typ.) |
| warna paparan | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| masa tindak balas | 18/12 (Typ.)(Tr/Td) |
| sudut pandangan | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | WLEDEmbedded (LED Driver) |
| antara muka isyarat | LVDS (1 ch, 6/8-bit), 20 pins |
| voltan masukan | 3.3V (Typ.) |
| permohonan | IA |
