AUO T650HVN07.0 lembaran data, spesifikasi, stok, aplikasi www.looklcd-my.com
LookLCD LookLCD

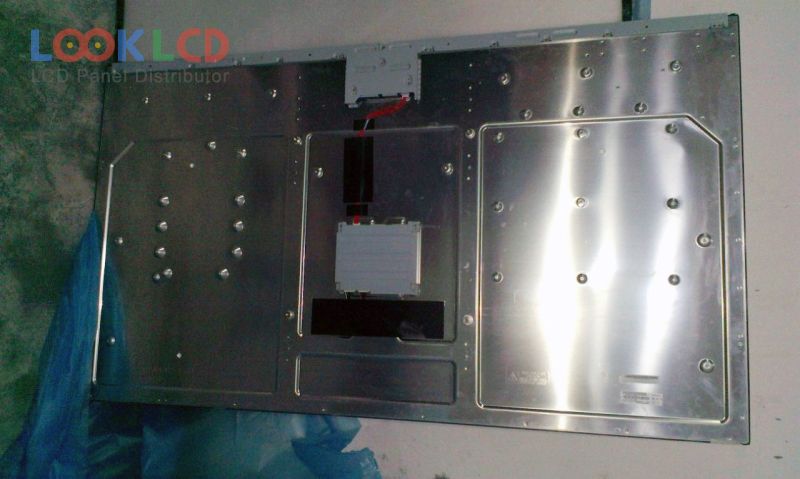

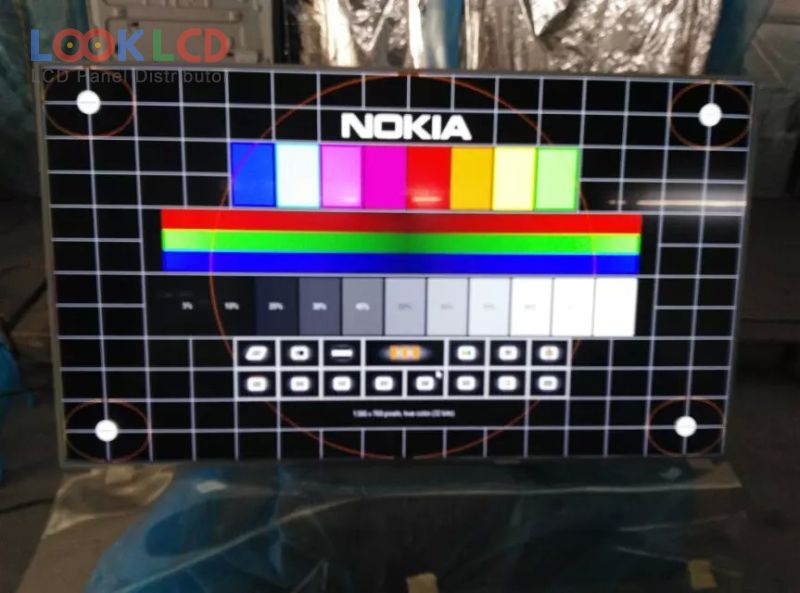

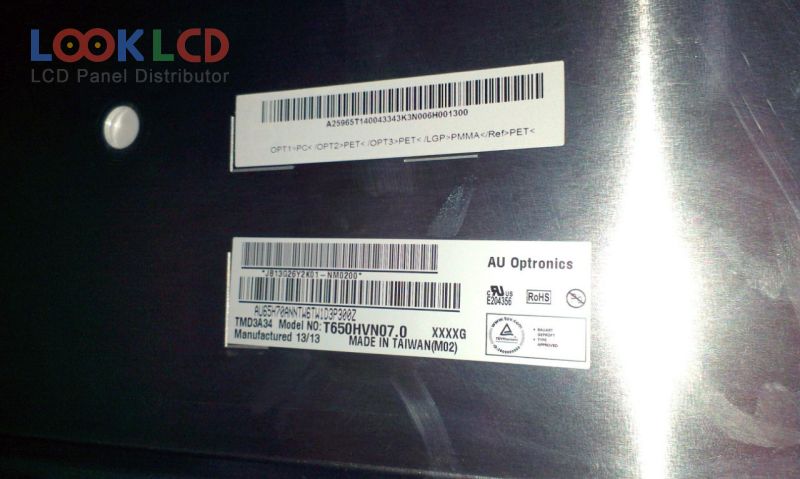

T650HVN07.0

T650HVN07.0
T650HVN07.0
T650HVN07.0
T650HVN07.0 thumb T650HVN07.0 thumb T650HVN07.0 thumb
Jenama
AUO
Saiz
65
Permohonan
LCTV
Resolusi
1920×1080
Komposisi
LCM
Kecerahan
400
CR
4000:1
Warna
1.06B
Lampu latar
WLED
Antara muka
LVDS
In Stock
97
Spesifikasi

Nombor Bahagian T650HVN07.0
JenamaAUO
Saiz65
PermohonanLCTV
Resolusi1920×1080
KomposisiLCM
Kecerahan400
CR4000:1
Warna1.06B
Lampu latarWLED
Antara mukaLVDS
jenama panelAUO
model panelT650HVN07.0
jenis panel a-Si TFT-LCD , LCM
saiz panel65 inch
resolusi1920(RGB)×1080 , FHD
mod paparanAMVA3, Normally Black, Transmissive
kawasan aktif1428.48×803.52 mm
garis besar1454.3×831.5×32.1 mm
permukaan
kecerahan400 cd/m² (Typ.)
nisbah kontras4000:1 (Typ.)
warna paparan1.06B (8-bit + FRC), CIE193172%
masa tindak balas6.5(Typ.)(G to G)
sudut pandangan89/89/89/89 (Typ.)(CR≥10)(L/R/U/D)
kekerapan120Hz
jenis lampuWLEDEmbedded (LED Driver)
antara muka isyaratLVDS (4 ch, 10-bit), 92 pins
voltan masukan12.0V (Typ.)
permohonanLCTV
Model Keluarga
T650HVD01.0 AUO 65 1920×1080
T650HVF03.0 AUO 65 1920×1080
T650HVJ02.1 AUO 65 1920×1080
T650HVN04.0 AUO 65 1920×1080
T650HVN04.1 AUO 65 1920×1080
T650HVN05.4 AUO 65 1920×1080
T650HVN05.9 AUO 65 1920×1080
T650HVN06.0 AUO 65 1920×1080
T650HVN07.0 AUO 65 1920×1080
T650HVN07.3 AUO 65 1920×1080
