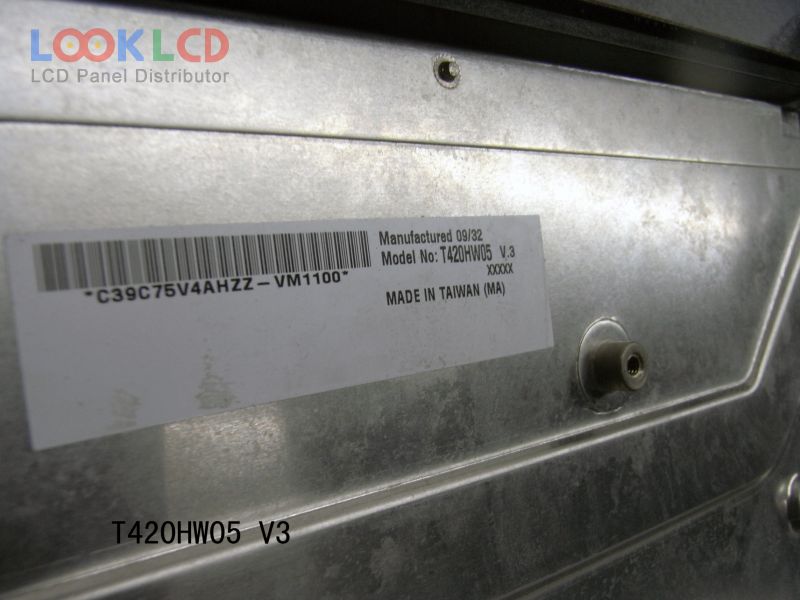

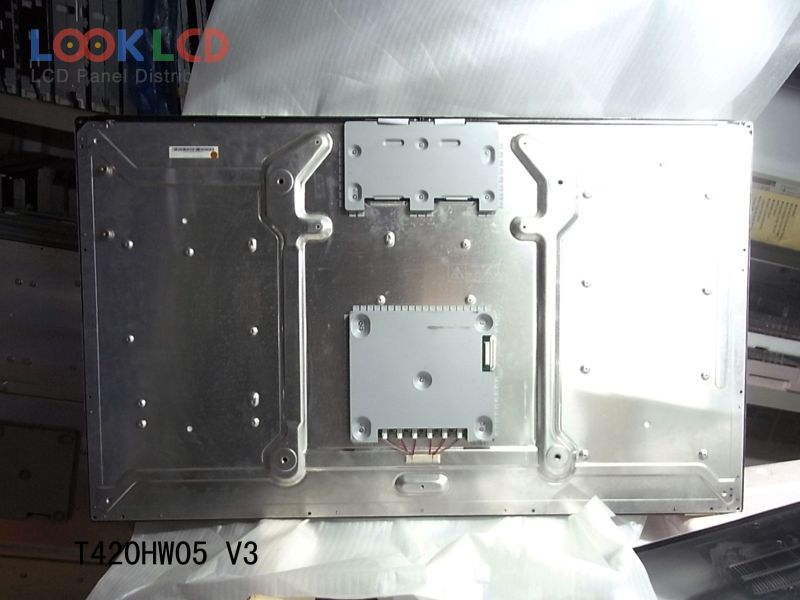

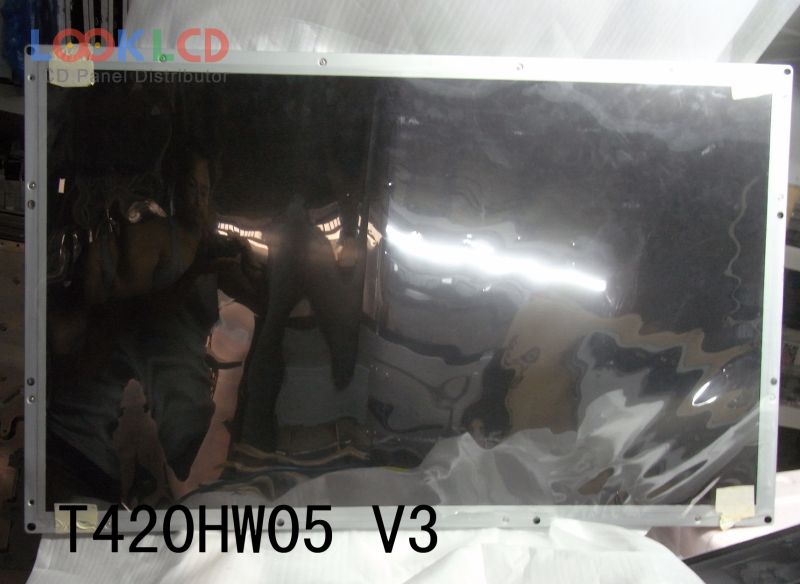

| Nombor Bahagian | T420HW05 V3 |
| Jenama | AUO |
| Saiz | 42 |
| Permohonan | LCTV |
| Resolusi | 1920×1080 |
| Komposisi | LCM |
| Kecerahan | 420 |
| CR | 4000:1 |
| Warna | 1.07B |
| Lampu latar | WLED |
| Antara muka | LVDS |
| jenama panel | AUO |
| model panel | T420HW05 V3 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 42 inch |
| resolusi | 1920(RGB)×1080 , FHD |
| mod paparan | AMVA3, Normally Black, Transmissive |
| kawasan aktif | 930.24×523.26 mm |
| garis besar | 994×587 mm |
| permukaan | Antiglare (Haze 11%), Hard coating (3H) |
| kecerahan | 420 cd/m² (Typ.) |
| nisbah kontras | 4000:1 (Typ.) |
| warna paparan | 1.07B (8-bit + Hi-FRC) |
| masa tindak balas | 8.5 (Typ.)(G to G) |
| sudut pandangan | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 120Hz |
| jenis lampu | WLEDEmbedded (LED Driver) |
| antara muka isyarat | LVDS (4 ch, 10-bit), 92 pins |
| voltan masukan | 12.0V (Typ.) |
| permohonan | LCTV |
