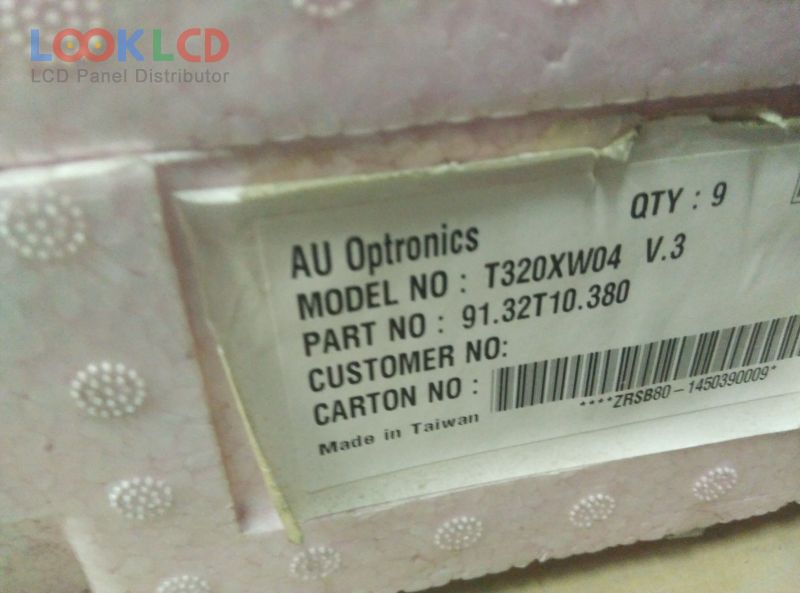

T320XW04 V3 CELL

T320XW04 V3 CELL
T320XW04 V3 CELL thumb
Jenama
AUO
Saiz
31.5
Permohonan
LCTV
Resolusi
1366×768
Komposisi
CELL
Kecerahan
0
CR
3000:1
Warna
16.7M
Lampu latar
No B/L
Antara muka
LVDS
In Stock
1
Spesifikasi

Nombor Bahagian T320XW04 V3 CELL
JenamaAUO
Saiz31.5
PermohonanLCTV
Resolusi1366×768
KomposisiCELL
Kecerahan0
CR3000:1
Warna16.7M
Lampu latarNo B/L
Antara mukaLVDS
jenama panelAUO
model panelT320XW04 V3 CELL
jenis panel a-Si TFT-LCD , CELL
saiz panel31.5 inch
resolusi1366(RGB)×768 , WXGA
mod paparanMVA, Normally Black, Transmissive
kawasan aktif697.685×392.256 mm
garis besar716.1×408.7 mm
permukaanAntiglare (Haze 2%), Hard coating (3H)
nisbah kontras3000:1 (Typ.)
warna paparan16.7M (8-bit), CIE193172%
masa tindak balas6.5 (Typ.)(G to G)
sudut pandangan89/89/89/89 (Typ.)(CR≥10)(L/R/U/D)
kekerapan60Hz
antara muka isyaratLVDS (1 ch, 8-bit), 30 pins
voltan masukan12.0V (Typ.)
permohonanLCTV
